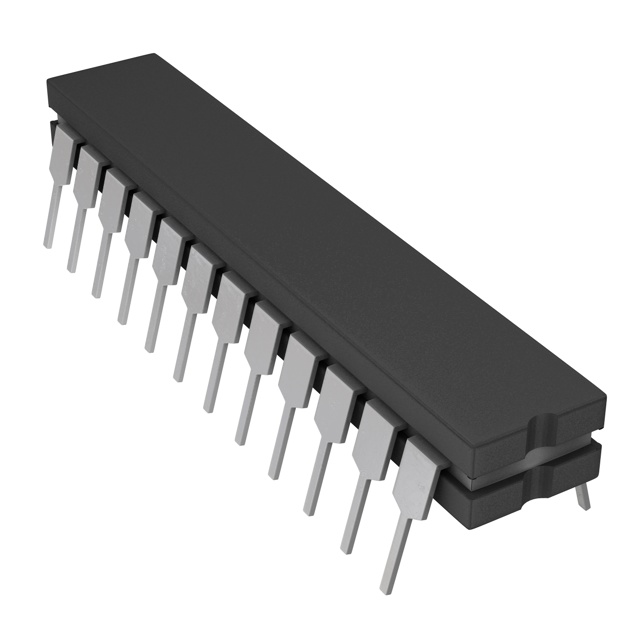

| Part number: | AD568JQ |
| Description: | IC DAC 12BIT A-OUT 24CDIP |
| Manufacturer | Linear Technology (Analog Devices, Inc.) |
| Encapsulation | Tube |
| Quantity | 15 |
| RoHS |
| TYPE | DESCRIPTION |
| Mfr | "Linear Technology (Analog Devices, Inc.)" |
| Package / Case | 24-CDIP (0.300", 7.62mm) |
| Output Type | Current - Unbuffered |
| Mounting Type | Through Hole |
| Number of Bits | 12 |
| Data Interface | Parallel |
| Reference Type | Internal |
| Operating Temperature | 0°C ~ 70°C |
| Voltage - Supply, Analog | ±13.5V ~ 16.5V |
| Voltage - Supply, Digital | 5V |
| Settling Time | 35µs (Typ) |
| Supplier Device Package | 24-CDIP |
| Architecture | R-2R |
| Number of D/A Converters | 1 |
| INL/DNL (LSB) | ±0.75 (Max), ±1 (Max) |
| Differential Output | No |
| DigiKey Programmable | Not Verified |
|
