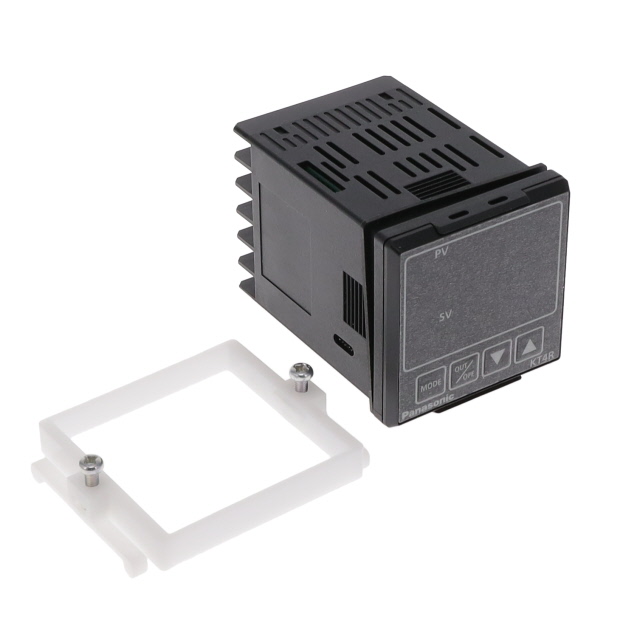

| Part number: | AKT4R1121001 |
| Description: | CNTRL TEMP REL/VOLT OUT 100-240V |
| Manufacturer | Panasonic Industrial Automation Sales |
| Encapsulation | Box |
| Quantity | 1 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Panasonic Industrial Automation Sales" |
| Display Type | LED - Dual Color Characters |
| Output Type | Relay, Voltage (External SSR) |
| Mounting Type | Panel Mount |
| Type | Temperature Controller (RTD, Type B, C, E, J, K, N, PL-II, R, S, T, W) |
| Weight | 0.243 lb (110.22 g) |
| Operating Temperature | -10°C ~ 55°C |
| Termination Style | Screw Terminal |
| Voltage - Supply | 100 ~ 240VAC |
| Ingress Protection | IP66 - Dust Tight, Water Resistant |
| Panel Cutout Dimensions | Square - 45.00mm x 45.00mm |
| Input Range | -200°C ~ 2315°C, 0 ~ 20mA, 0 ~ 10VDC |
| Display Characters - Height | 0.488" (12.40mm), 0.347" (8.80mm) |
| Communications | RS-485 |
| Control Method | On/Off, Proportional (PID) |
| Number of Characters Per Row | 4, 4 |
|
