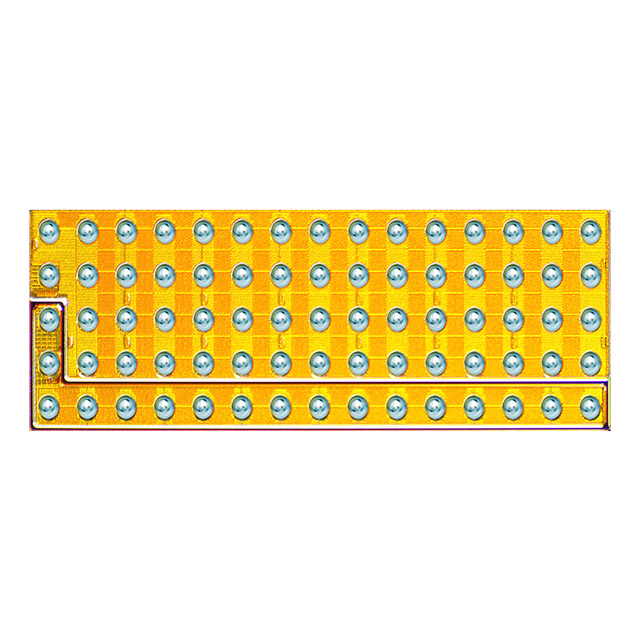

| Part number: | EPC2100ENGRT |
| Description: | GANFET 2 N-CH 30V 9.5A/38A DIE |
| Manufacturer | EPC |
| Encapsulation | Tape & Reel (TR) |
| Quantity | 500 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "EPC" |
| Package / Case | Die |
| Mounting Type | Surface Mount |
| Configuration | 2 N-Channel (Half Bridge) |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Technology | GaNFET (Gallium Nitride) |
| Drain to Source Voltage (Vdss) | 30V |
| Current - Continuous Drain (Id) @ 25°C | 10A (Ta), 40A (Ta) |
| Input Capacitance (Ciss) (Max) @ Vds | 475pF @ 15V, 1960pF @ 15V |
| Rds On (Max) @ Id, Vgs | 8.2mOhm @ 25A, 5V, 2.1mOhm @ 25A, 5V |
| Gate Charge (Qg) (Max) @ Vgs | 4.9nC @ 15V, 19nC @ 15V |
| Vgs(th) (Max) @ Id | 2.5V @ 4mA, 2.5V @ 16mA |
| Supplier Device Package | Die |
|
