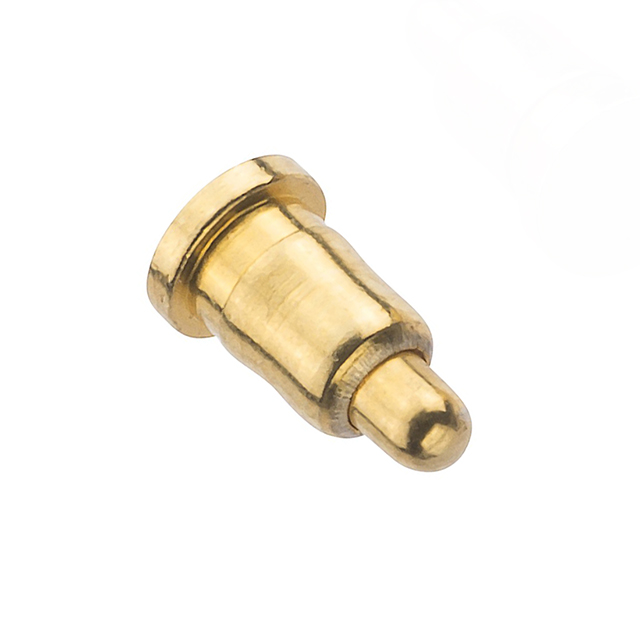

| Part number: | P70-1000045R |
| Description: | CONTACT SPRING LOADED SMD GOLD |
| Manufacturer | Harwin |
| Encapsulation | Tape & Reel (TR) |
| Quantity | 1400 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Harwin" |
| Contact Finish | Gold |
| Current Rating (Amps) | 2A |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 85°C |
| Contact Type | Sleeve & Plunger (Pogo Pins) |
| Contact Finish Thickness | 16.0µin (0.41µm) |
| Contact Material | Brass |
| Mating Cycles | 10000 |
| Maximum Working Height | 0.118" (3.00mm) |
| Recommended Working Height | 0.114" (2.90mm) |
| Minimum Working Height | 0.106" (2.70mm) |
| Pad Layout Dimension | Circular - 0.087" (2.20mm) |
| Plunger Size | 0.035" (0.90mm) Dia |
| Operating Force - Mid Compression | 89.74gf |
|
