| Part number: | P70-6000045R |

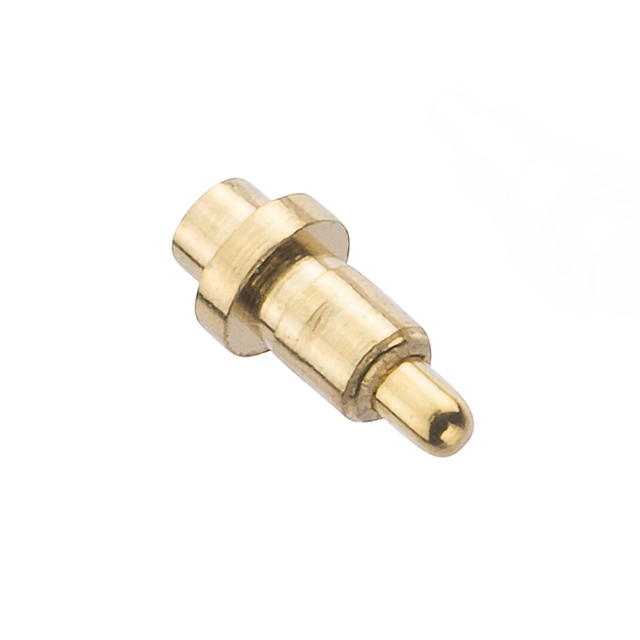

| Description: | CONTACT SPRING LOADED T/H GOLD |
| Manufacturer | Harwin |
| Encapsulation | Tape & Reel (TR) |
| Quantity | 1800 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Harwin" |
| Contact Finish | Gold |
| Current Rating (Amps) | 1A |
| Mounting Type | Through Hole |
| Operating Temperature | -40°C ~ 85°C |
| Contact Type | Sleeve & Plunger (Pogo Pins) |
| Contact Finish Thickness | 16.0µin (0.41µm) |
| Contact Material | Brass |
| Mating Cycles | 10000 |
| Maximum Working Height | 0.087" (2.20mm) |
| Recommended Working Height | 0.083" (2.10mm) |
| Minimum Working Height | 0.075" (1.90mm) |
| Pad Layout Dimension | Circular - 0.067" (1.70mm) (TH) |
| Plunger Size | 0.024" (0.60mm) Dia |
| Operating Force - Mid Compression | 39.77gf |
|
