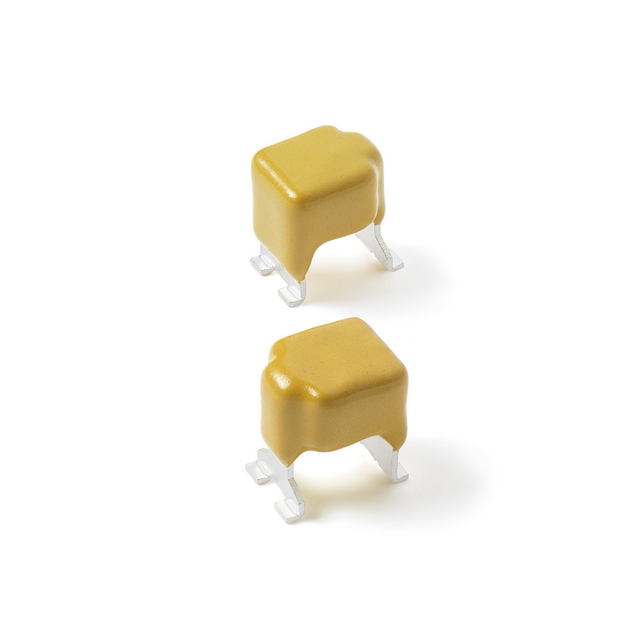

| Part number: | SMTAK3-058C |
| Description: | TVS DIODE 58VWM 110VC |
| Manufacturer | Wickmann / Littelfuse |
| Encapsulation | Bulk |
| Quantity | 200 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Wickmann / Littelfuse" |
| Package / Case | 4-SMD |
| Mounting Type | Surface Mount |
| Type | Zener |
| Operating Temperature | -55°C ~ 125°C (TJ) |
| Applications | General Purpose |
| Capacitance @ Frequency | 6000pF @ 10kHz (Max) |
| Current - Peak Pulse (10/1000µs) | 3000A (3kA) (8/20µs) |
| Voltage - Reverse Standoff (Typ) | 58V |
| Bidirectional Channels | 1 |
| Voltage - Breakdown (Min) | 64V |
| Voltage - Clamping (Max) @ Ipp | 110V |
| Power Line Protection | No |
|
