| Part number: | IL 422-3V |
| Description: | DGT ISO 2.5KV RS422/RS485 16SOIC |
| Manufacturer | NVE Corporation |
| Encapsulation | Tube |
| Quantity | 50 |
| RoHS |
| TYPE | DESCRIPTION |
| Mfr | "NVE Corporation" |

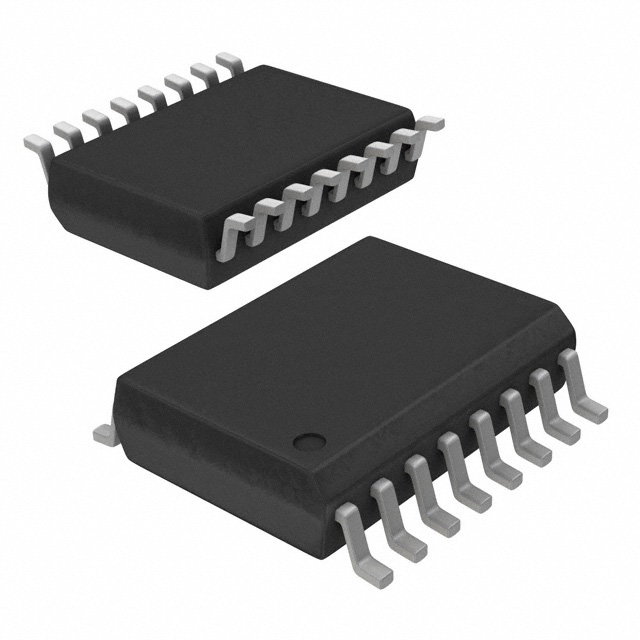

| Package / Case | 16-SOIC (0.295", 7.50mm Width) |
| Mounting Type | Surface Mount |
| Type | RS422, RS485 |
| Operating Temperature | -40°C ~ 100°C |
| Voltage - Supply | 3V ~ 5.5V, 4.5V ~ 5.5V |
| Data Rate | 25Mbps |
| Technology | GMR (Giant Magnetoresistive) |
| Voltage - Isolation | 2500Vrms |
| Inputs - Side 1/Side 2 | 2/1 |
| Supplier Device Package | 16-SOIC |
| Rise / Fall Time (Typ) | 8ns, 8ns |
| Common Mode Transient Immunity (Min) | 20kV/µs |
| Propagation Delay tpLH / tpHL (Max) | 32ns, 32ns |
| Isolated Power | No |
| Channel Type | Unidirectional |
| Number of Channels | 3 |
|
