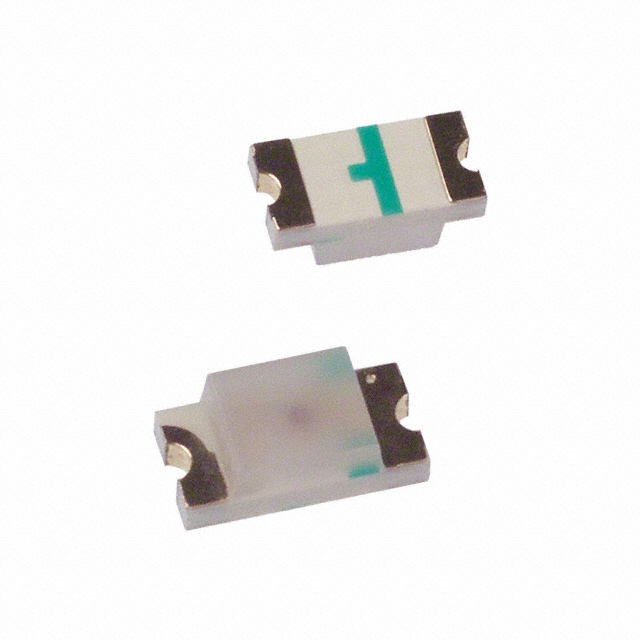

| Part number: | HSMY-C150 |
| Description: | LED YELLOW DIFFUSED SMD |
| Manufacturer | Broadcom |
| Encapsulation | Tape & Reel (TR) |
| Quantity | 3000 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Broadcom" |
| Package / Case | 1206 (3216 Metric) |
| Color | Yellow |
| Size / Dimension | 3.20mm L x 1.60mm W |
| Mounting Type | Surface Mount |
| Millicandela Rating | 8mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 2.1V |
| Lens Color | White |
| Current - Test | 20mA |
| Viewing Angle | 170° |
| Height (Max) | 1.10mm |
| Wavelength - Peak | 589nm |
| Wavelength - Dominant | 586nm |
| Supplier Device Package | Chip LED |
| Lens Transparency | Diffused |
| Lens Style | Rectangle with Flat Top |
| Lens Size | 2.00mm x 1.60mm |
|
