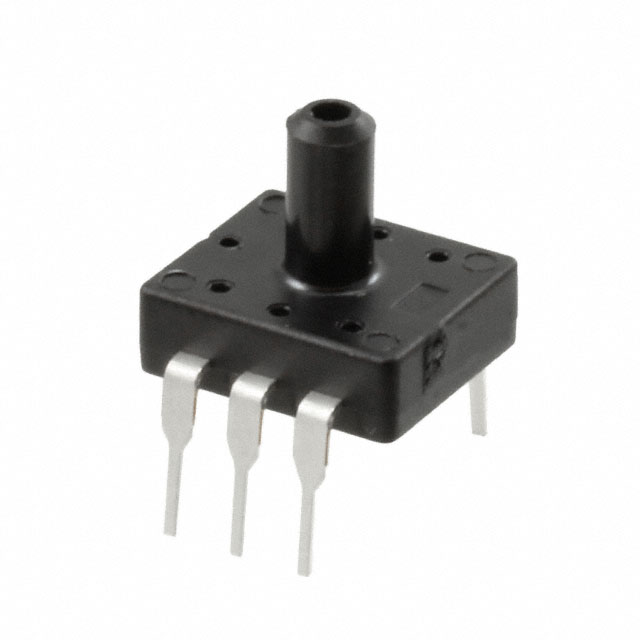

| Part number: | ADP1101 |
| Description: | SENSOR 0.71PSIG 0.12" .04V |
| Manufacturer | Panasonic Electronic Components |
| Encapsulation | Tube |
| Quantity | 100 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Panasonic Electronic Components" |
| Features | Temperature Compensated |
| Package / Case | 6-DIP Module |
| Output Type | Wheatstone Bridge |
| Mounting Type | Through Hole |
| Output | 0 mV ~ 40 mV |
| Operating Pressure | 0.71PSI (4.9kPa) |
| Pressure Type | Vented Gauge |
| Accuracy | ±0.7% |
| Operating Temperature | -20°C ~ 100°C |
| Termination Style | PC Pin |
| Voltage - Supply | 5V |
| Port Size | Male - 0.12" (3mm) Tube |
| Applications | Board Mount |
| Port Style | Barbless |
| Maximum Pressure | 1.42PSI (9.8kPa) |
|
