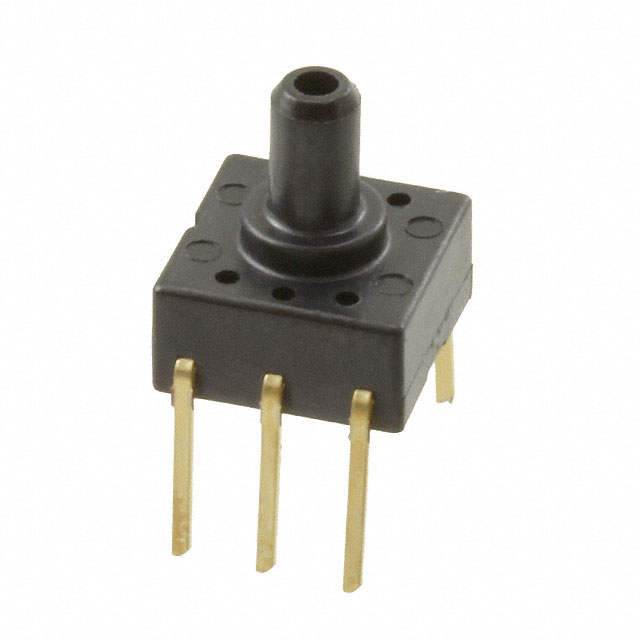

| Part number: | ADP41610 |
| Description: | SENSOR 49.78PSIG 0.1" 0.1V |
| Manufacturer | Panasonic Electronic Components |
| Encapsulation | Box |
| Quantity | 100 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Panasonic Electronic Components" |
| Features | Temperature Compensated |
| Package / Case | 6-DIP Module |
| Output Type | Wheatstone Bridge |
| Mounting Type | Through Hole |
| Output | 0 mV ~ 100 mV |
| Operating Pressure | 49.78PSI (343.2kPa) |
| Pressure Type | Vented Gauge |
| Accuracy | ±0.3% |
| Operating Temperature | -20°C ~ 100°C |
| Termination Style | PC Pin |
| Port Size | Male - 0.1" (2.5mm) Tube |
| Applications | Board Mount |
| Port Style | Barbless |
| Maximum Pressure | 99.55PSI (686.4kPa) |
|
