| Part number: | 39808000000 |

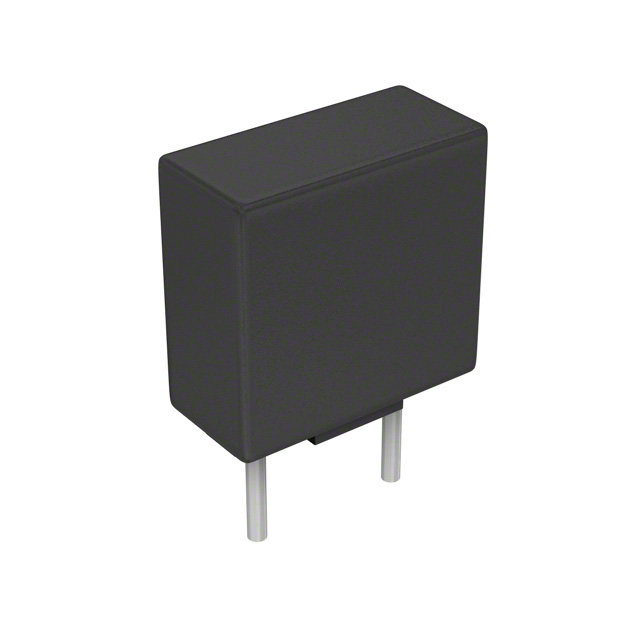

| Description: | FUSE BRD MNT 800MA 65VAC/VDC RAD |
| Manufacturer | Wickmann / Littelfuse |
| Encapsulation | Tape & Box (TB) |
| Quantity | 1400 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Wickmann / Littelfuse" |
| Package / Case | Radial, Box |
| Size / Dimension | 0.335" L x 0.157" W x 0.315" H (8.50mm x 4.00mm x 8.00mm) |
| Fuse Type | Board Mount (Cartridge Style Excluded) |
| Mounting Type | Through Hole |
| Operating Temperature | -40°C ~ 85°C |
| Response Time | Medium Blow |
| Approval Agency | cULus |
| DC Cold Resistance | 0.085 Ohms |
| Breaking Capacity @ Rated Voltage | 50A |
| Current Rating (Amps) | 800 mA |
| Voltage Rating - AC | 65 V |
| Voltage Rating - DC | 65 V |
| Melting I²t | 0.64 |
|
