| Part number: | STS5DNF20V |
| Description: | MOSFET 2N-CH 20V 5A 8SOIC |
| Manufacturer | STMicroelectronics |
| Encapsulation | Tape & Reel (TR) |
| Quantity | 2500 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "STMicroelectronics" |

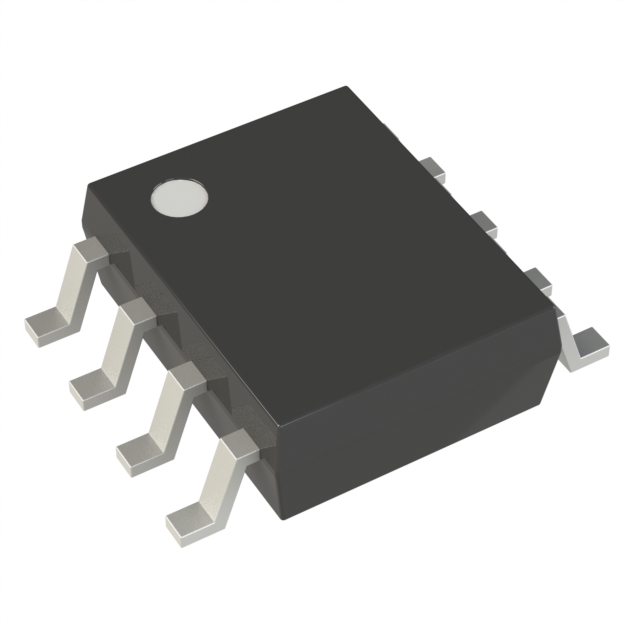

| Package / Case | 8-SOIC (0.154", 3.90mm Width) |
| Mounting Type | Surface Mount |
| Configuration | 2 N-Channel (Dual) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| Power - Max | 2W |
| Drain to Source Voltage (Vdss) | 20V |
| Current - Continuous Drain (Id) @ 25°C | 5A |
| Input Capacitance (Ciss) (Max) @ Vds | 460pF @ 25V |
| Rds On (Max) @ Id, Vgs | 40mOhm @ 2.5A, 4.5V |
| Gate Charge (Qg) (Max) @ Vgs | 11.5nC @ 4.5V |
| FET Feature | Logic Level Gate |
| Vgs(th) (Max) @ Id | 600mV @ 250µA |
| Supplier Device Package | 8-SOIC |
|
