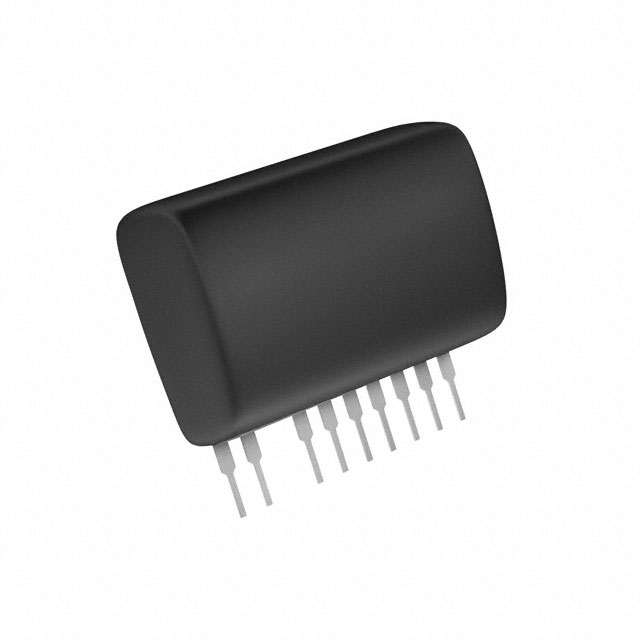

| Part number: | BP5232-33A |
| Description: | DC DC CONVERTER 2.5V 2A |
| Manufacturer | ROHM Semiconductor |
| Encapsulation | Tray |
| Quantity | 100 |
| RoHS |
| TYPE | DESCRIPTION |
| Mfr | "ROHM Semiconductor" |
| Features | Remote On/Off |
| Package / Case | 10-SIP Module, 9 Leads |
| Size / Dimension | 1.10" L x 0.47" W x 0.77" H (28.0mm x 12.0mm x 19.5mm) |
| Mounting Type | Through Hole |
| Type | Non-Isolated PoL Module |
| Operating Temperature | -20°C ~ 55°C |
| Applications | ITE (Commercial) |
| Voltage - Input (Max) | 5.5V |
| Efficiency | 93% |
| Current - Output (Max) | 2A |
| Voltage - Input (Min) | 4.5V |
| Voltage - Output 1 | 2.5V |
| Number of Outputs | 1 |
|
