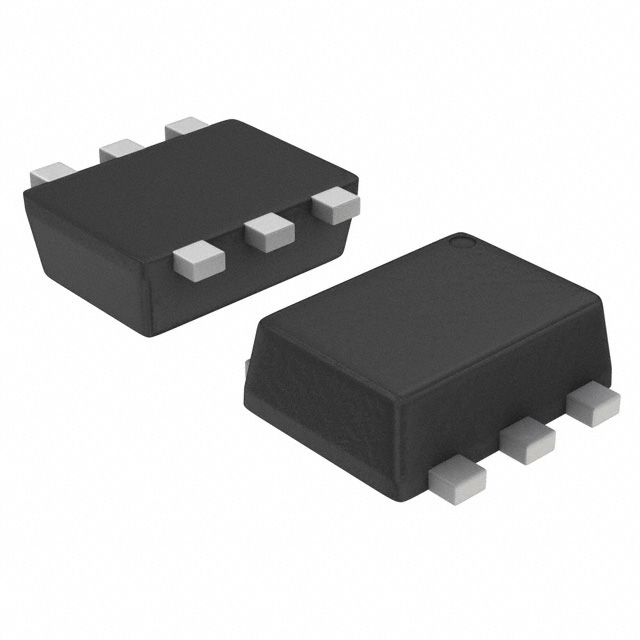

| Part number: | EMD5DXV6T1 |
| Description: | TRANS PREBIAS NPN/PNP SOT563 |
| Manufacturer | Sanyo Semiconductor/onsemi |
| Encapsulation | Tape & Reel (TR) |
| Quantity | 4000 |
| RoHS |
| TYPE | DESCRIPTION |
| Mfr | "Sanyo Semiconductor/onsemi" |
| Package / Case | SOT-563, SOT-666 |
| Mounting Type | Surface Mount |
| Transistor Type | 1 NPN, 1 PNP - Pre-Biased (Dual) |
| Power - Max | 500mW |
| Current - Collector (Ic) (Max) | 100mA |
| Voltage - Collector Emitter Breakdown (Max) | 50V |
| Vce Saturation (Max) @ Ib, Ic | 250mV @ 300µA, 10mA |
| Current - Collector Cutoff (Max) | 500nA |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 80 @ 5mA, 10V / 20 @ 5mA, 10V |
| Resistor - Base (R1) | 4.7kOhms, 47kOhms |
| Resistor - Emitter Base (R2) | 10kOhms, 47kOhms |
| Supplier Device Package | SOT-563 |
|
