| Part number: | NGP15N41CL |
| Description: | IGBT 440V 15A 107W TO220AB |
| Manufacturer | Sanyo Semiconductor/onsemi |
| Encapsulation | Tube |
| Quantity | 50 |
| RoHS |
| TYPE | DESCRIPTION |
| Mfr | "Sanyo Semiconductor/onsemi" |

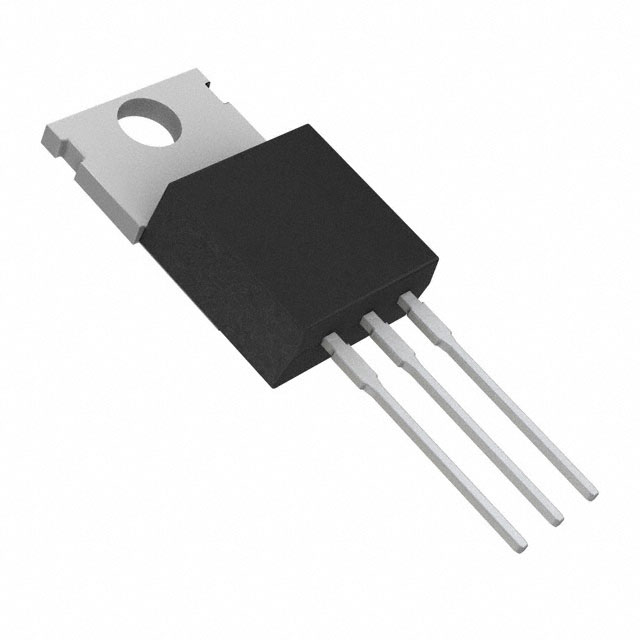

| Package / Case | TO-220-3 |
| Mounting Type | Through Hole |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Input Type | Logic |
| Vce(on) (Max) @ Vge, Ic | 2.2V @ 4V, 10A |
| Supplier Device Package | TO-220 |
| Td (on/off) @ 25°C | -/4µs |
| Test Condition | 300V, 6.5A, 1kOhm |
| Current - Collector (Ic) (Max) | 15 A |
| Voltage - Collector Emitter Breakdown (Max) | 440 V |
| Current - Collector Pulsed (Icm) | 50 A |
| Power - Max | 107 W |
|
