| Part number: | BL-23497-000 |

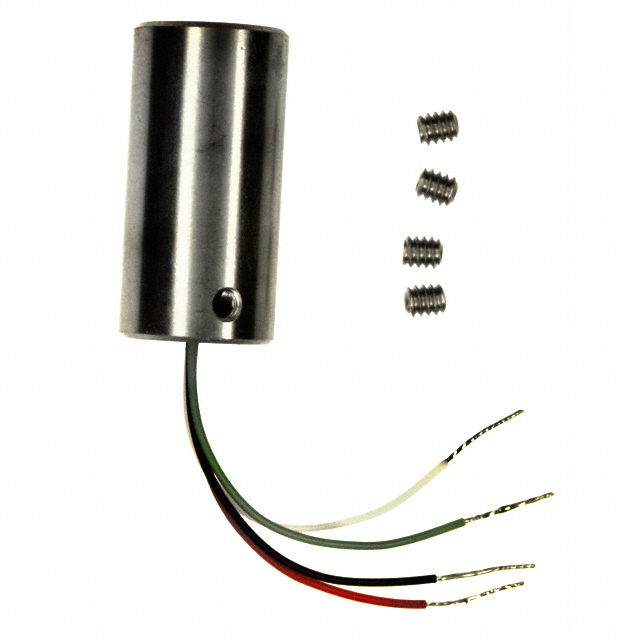

| Description: | MICROPHONE PIEZO ANALOG OMNI |
| Manufacturer | Knowles |
| Encapsulation | Bulk |
| Quantity | 25 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Knowles" |
| Output Type | Analog |
| Size / Dimension | 0.500" Dia (12.70mm) |
| Sensitivity | -69dB ±3dB @ 74dB SPL |
| Shape | Circular |
| Type | Piezo |
| Termination | Wire Leads |
| Direction | Omnidirectional |
| Port Location | Top |
| Height (Max) | 1.008" (25.60mm) |
| Voltage - Rated | 3 V |
| Impedance | 4 kOhms |
| Current - Supply | 160 µA |
| Frequency Range | 20 Hz ~ 10 kHz |
|
