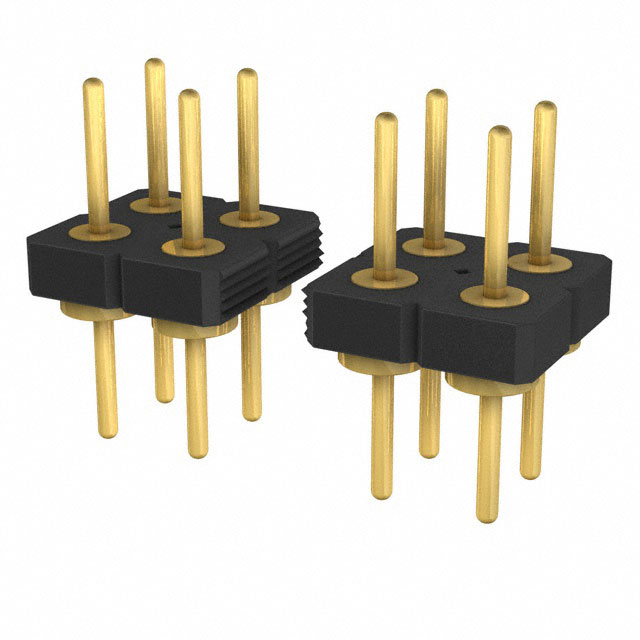

| Part number: | BDL-118-G-F |
| Description: | CONN HEADER VERT 36POS 2.54MM |
| Manufacturer | Samtec, Inc. |
| Encapsulation | Tube |
| Quantity | 12 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Samtec, Inc." |
| Connector Type | Header |
| Mounting Type | Through Hole |
| Number of Positions | 36 |
| Number of Rows | 2 |
| Style | Board to Board |
| Operating Temperature | -55°C ~ 125°C |
| Contact Type | Male Pin |
| Fastening Type | Push-Pull |
| Number of Positions Loaded | All |
| Termination | Solder |
| Insulation Color | Black |
| Pitch - Mating | 0.100" (2.54mm) |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 20.0µin (0.51µm) |
| Contact Finish - Post | Gold |
| Contact Shape | Circular |
| Contact Length - Post | 0.125" (3.18mm) |
| Insulation Height | 0.085" (2.15mm) |
| Shrouding | Unshrouded |
| Overall Contact Length | 0.332" (8.43mm) |
| Insulation Material | Polyamide (PA), Nylon |
| Row Spacing - Mating | 0.100" (2.54mm) |
| Contact Length - Mating | 0.122" (3.10mm) |
|
