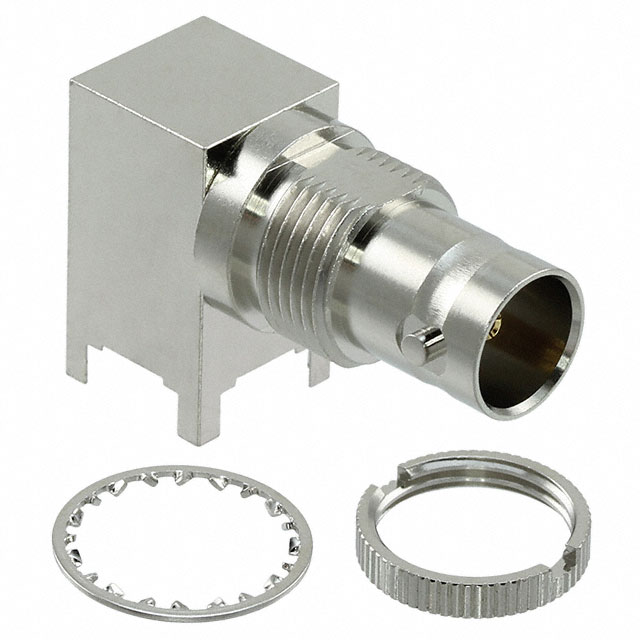

| Part number: | BNC7T-J-P-GN-RA-BH1 |
| Description: | CONN BNC JACK R/A 75 OHM PCB |
| Manufacturer | Samtec, Inc. |
| Encapsulation | Tray |
| Quantity | 1 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Samtec, Inc." |
| Connector Type | Jack, Female Socket |
| Contact Termination | Solder |
| Impedance | 75 Ohms |
| Mounting Type | Panel Mount, Through Hole, Right Angle |
| Operating Temperature | -65°C ~ 125°C |
| Fastening Type | Bayonet Lock |
| Includes | 3 pcs - 1 Connector, 1 Lockwasher, 1 Nut |
| Connector Style | BNC |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Mounting Feature | Bulkhead - Front Side Nut |
| Body Material | Brass |
| Housing Color | Silver |
| Shield Termination | Solder |
| Center Contact Material | Copper Alloy |
| Body Finish | Nickel |
| Center Contact Plating | Gold |
| Frequency - Max | 12 GHz |
| Number of Ports | 1 |
| Voltage Rating | 500 V |
|
