| Part number: | 691304330002 |

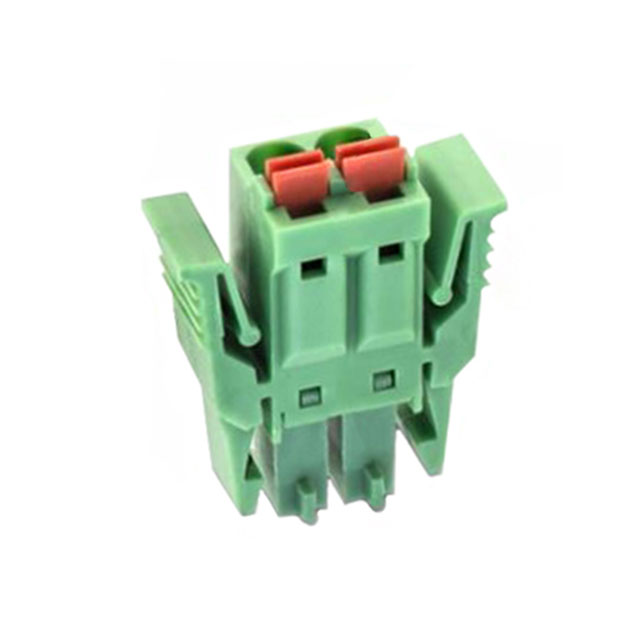

| Description: | TERM BLOCK PLUG 2POS 180 3.81MM |
| Manufacturer | Würth Elektronik Midcom |
| Encapsulation | Bulk |
| Quantity | 330 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Würth Elektronik Midcom" |
| Features | Latch Lock |
| Color | Green |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 2 |
| Pitch | 0.150" (3.81mm) |
| Type | Plug, Female Sockets |
| Operating Temperature | -40°C ~ 105°C |
| Termination Style | Screwless - Leg Spring, Push-In Spring |
| Material Flammability Rating | UL94 V-0 |
| Number of Levels | 1 |
| Wire Gauge or Range - AWG | 16-24 AWG |
| Wire Gauge or Range - mm² | 0.21-1.3mm² |
| Positions Per Level | 2 |
| Contact Material | Steel, Stainless |
| Plug Wire Entry | 180° |
| Housing Material | Polyamide (PA66), Nylon 6/6 |
| Wire Strip Length | 6mm |
| Insulation Height | 0.307" (7.80mm) |
| Current - UL | 12 A |
| Voltage - UL | 300 V |
|
