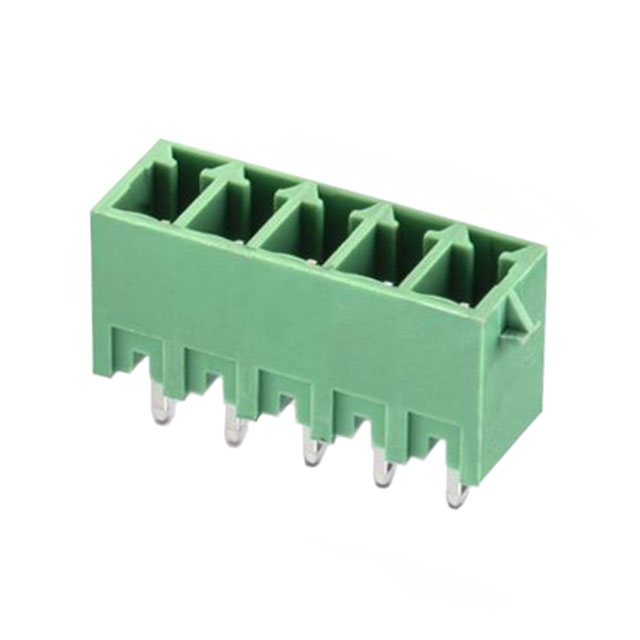

| Part number: | 691305330005 |
| Description: | TERM BLOCK HDR 5POS VERT 3.8MM |
| Manufacturer | Würth Elektronik Midcom |
| Encapsulation | Bulk |
| Quantity | 640 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Würth Elektronik Midcom" |
| Features | Locking Ramp |
| Color | Green |
| Mounting Type | Through Hole |
| Number of Positions | 5 |
| Pitch | 0.150" (3.81mm) |
| Type | Header, Male Pins, Shrouded (4 Side) |
| Operating Temperature | -40°C ~ 105°C |
| Termination Style | Solder |
| Material Flammability Rating | UL94 V-0 |
| Number of Levels | 1 |
| Positions Per Level | 5 |
| Contact Material | Copper Alloy |
| Header Orientation | Vertical |
| Housing Material | Polyamide (PA66), Nylon 6/6 |
| Contact Mating Finish | Tin |
| Contact Tail Length | 0.138" (3.50mm) |
| Insulation Height | 0.362" (9.20mm) |
| Current - UL | 12 A |
| Voltage - UL | 300 V |
|
