| Part number: | 691412220012 |

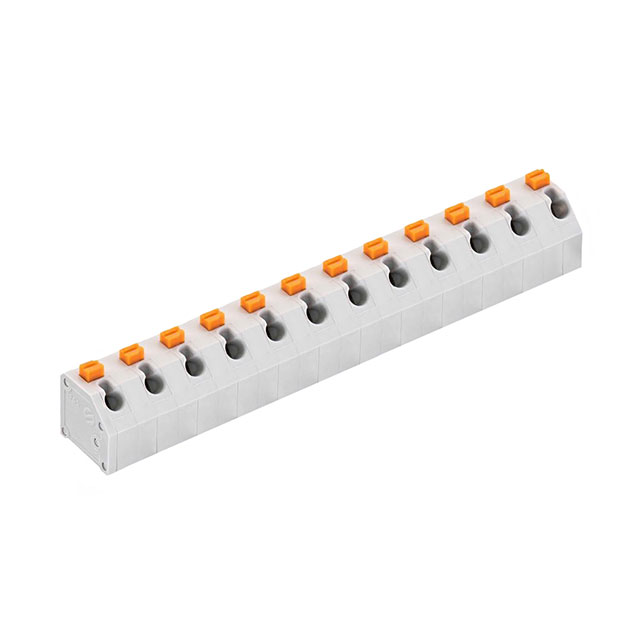

| Description: | TERM BLOCK 12POS 45DEG 7MM PCB |
| Manufacturer | Würth Elektronik Midcom |
| Encapsulation | Bulk |
| Quantity | 50 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Würth Elektronik Midcom" |
| Color | Gray |
| Mounting Type | Through Hole, Kinked Pin |
| Wire Gauge | 16-30 AWG |
| Pitch | 0.276" (7.00mm) |
| Mating Orientation | 45° (135°) Angle with Board |
| Positions Per Level | 12 |
| Housing Material | Polyamide (PA66), Nylon 6/6 |
| Contact Material - Plating | Phosphor Bronze - Tin Plated |
| Clamp Material - Plating | Phosphor Bronze |
| Wire Termination | Screwless |
| Current | 4 A |
| Number of Levels | 1 |
| Voltage | 300 V |
|
