| Part number: | ADM2486BRW |
| Description: | DGT ISO 2.5KV RS422/RS485 16SOIC |
| Manufacturer | Linear Technology (Analog Devices, Inc.) |
| Encapsulation | Tube |
| Quantity | 47 |
| RoHS |
| TYPE | DESCRIPTION |
| Mfr | "Linear Technology (Analog Devices, Inc.)" |

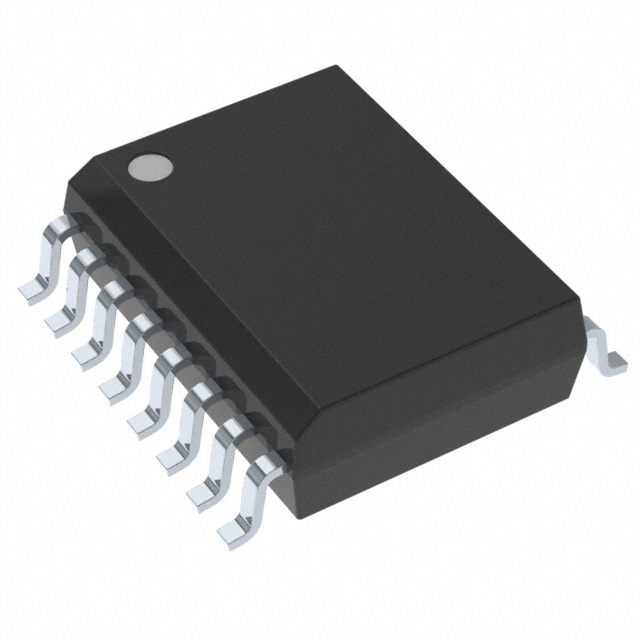

| Package / Case | 16-SOIC (0.295", 7.50mm Width) |
| Mounting Type | Surface Mount |
| Type | RS422, RS485 |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply | 3V, 5V |
| Data Rate | 20Mbps |
| Technology | Magnetic Coupling |
| Voltage - Isolation | 2500Vrms |
| Inputs - Side 1/Side 2 | 2/1 |
| Supplier Device Package | 16-SOIC |
| Rise / Fall Time (Typ) | 5ns, 5ns |
| Common Mode Transient Immunity (Min) | 25kV/µs |
| Propagation Delay tpLH / tpHL (Max) | 55ns, 55ns |
| Isolated Power | No |
| Channel Type | Bidirectional |
| Pulse Width Distortion (Max) | 5ns |
| Number of Channels | 3 |
|
