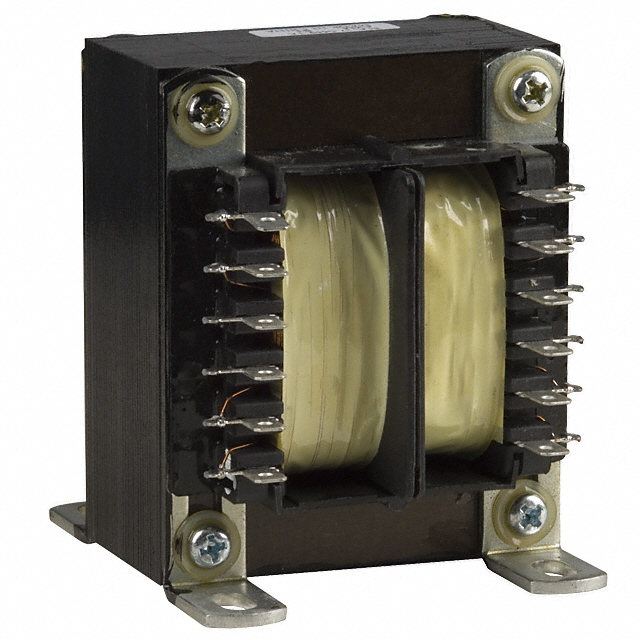

| Part number: | VPS10-17500 |
| Description: | PWR XFMR LAMINATED 175VA CHAS MT |
| Manufacturer | Triad Magnetics |
| Encapsulation | Box |
| Quantity | 1 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Triad Magnetics" |
| Size / Dimension | 79.38mm L x 71.37mm W |
| Mounting Type | Chassis Mount |
| Type | Laminated Core |
| Weight | 5.5 lbs (2.5 kg) |
| Termination Style | Solder, Quick Connect |
| Primary Winding(s) | Dual |
| Secondary Winding(s) | Dual |
| Power - Max | 175VA |
| Voltage - Isolation | 4000Vrms |
| Current - Output (Max) | Parallel 35A, Series 17.5A |
| Voltage - Primary | 115V, 230V |
| Height - Seated (Max) | 95.25mm |
| Voltage - Secondary (Full Load) | Parallel 5V, Series 10V |
| Center Tap | No |
|
