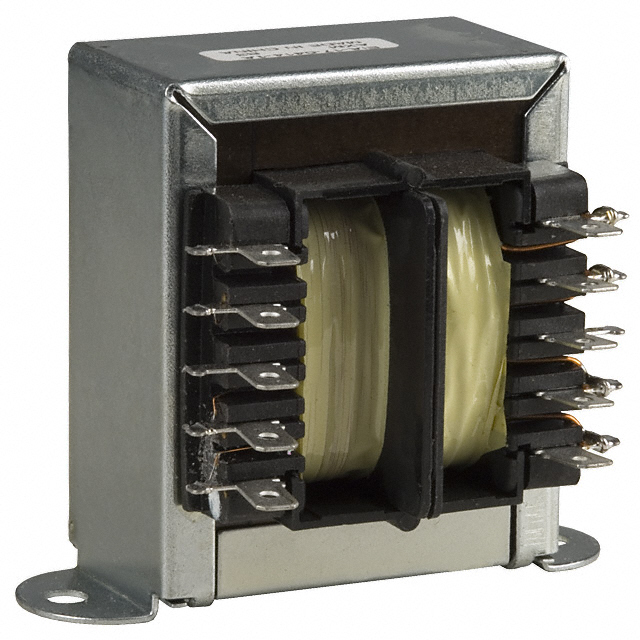

| Part number: | VPS12-3400 |
| Description: | PWR XFMR LAMINATED 43VA CHAS MT |
| Manufacturer | Triad Magnetics |
| Encapsulation | Box |
| Quantity | 1 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Triad Magnetics" |
| Size / Dimension | 58.67mm L x 50.80mm W |
| Mounting Type | Chassis Mount |
| Type | Laminated Core |
| Weight | 1.6 lbs (725.7 g) |
| Termination Style | Solder, Quick Connect |
| Primary Winding(s) | Dual |
| Secondary Winding(s) | Dual |
| Power - Max | 43VA |
| Voltage - Isolation | 4000Vrms |
| Current - Output (Max) | Parallel 6.8A, Series 3.4A |
| Voltage - Primary | 115V, 230V |
| Height - Seated (Max) | 68.33mm |
| Voltage - Secondary (Full Load) | Parallel 6.3V, Series 12.6V |
| Center Tap | No |
|
