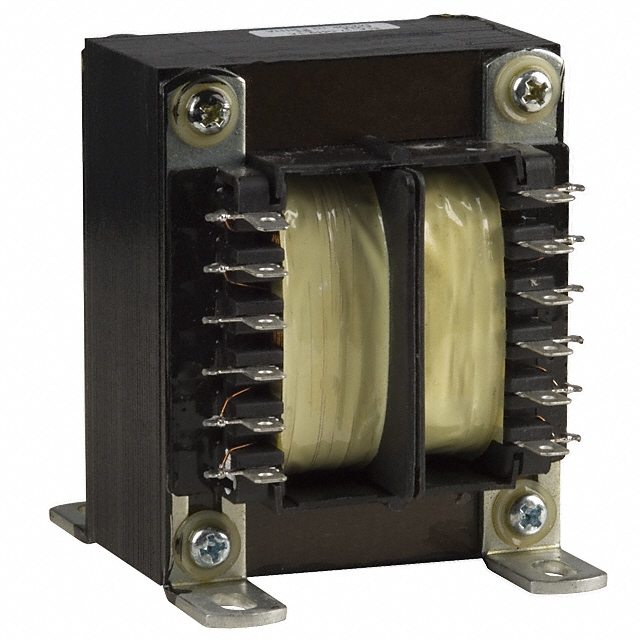

| Part number: | VPS36-2200 |
| Description: | PWR XFMR LAMINATED 80VA CHAS MT |
| Manufacturer | Triad Magnetics |
| Encapsulation | Box |
| Quantity | 1 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Triad Magnetics" |
| Size / Dimension | 63.50mm L x 58.67mm W |
| Mounting Type | Chassis Mount |
| Type | Laminated Core |
| Weight | 2.8 lbs (1.3 kg) |
| Termination Style | Solder, Quick Connect |
| Primary Winding(s) | Dual |
| Secondary Winding(s) | Dual |
| Power - Max | 80VA |
| Voltage - Isolation | 4000Vrms |
| Current - Output (Max) | Parallel 4.4A, Series 2.2A |
| Voltage - Primary | 115V, 230V |
| Height - Seated (Max) | 76.20mm |
| Voltage - Secondary (Full Load) | Parallel 18V, Series 36V |
| Center Tap | No |
|
