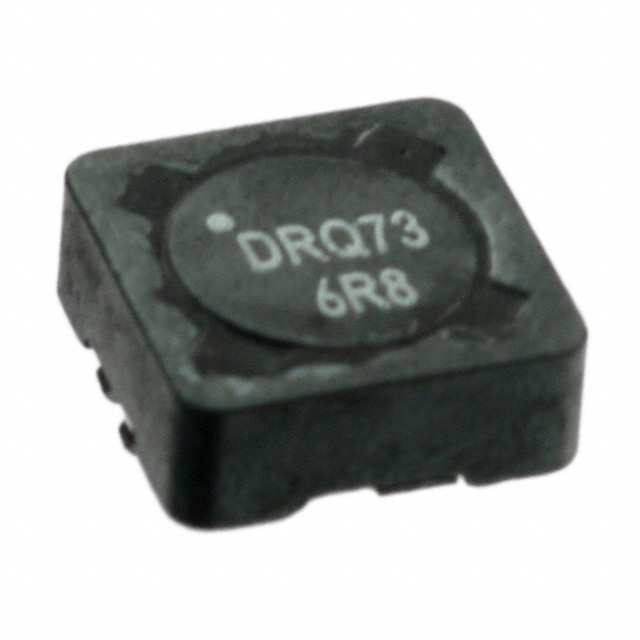

| Part number: | DRQ73-6R8-R |
| Description: | INDUCT ARRAY 2 COIL 6.48UH SMD |
| Manufacturer | PowerStor (Eaton) |
| Encapsulation | Tape & Reel (TR) |
| Quantity | 1350 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "PowerStor (Eaton)" |
| Tolerance | ±20% |
| Package / Case | Nonstandard |
| Size / Dimension | 0.299" L x 0.299" W (7.60mm x 7.60mm) |
| Mounting Type | Surface Mount |
| Shielding | Shielded |
| Operating Temperature | -40°C ~ 125°C |
| Height | 0.140" (3.55mm) |
| Number of Coils | 2 |
| Inductance - Connected In Series | 25.92 µH |
| Inductance - Connected In Parallel | 6.48 µH |
| Current Rating - Parallel | 2.55 A |
| Current Rating - Series | 1.28 A |
| Current Saturation - Parallel | 3.12 A |
| Current Saturation - Series | 1.56 A |
| DC Resistance (DCR) - Parallel | 43.5mOhm |
| DC Resistance (DCR) - Series | 174.2mOhm |
|
