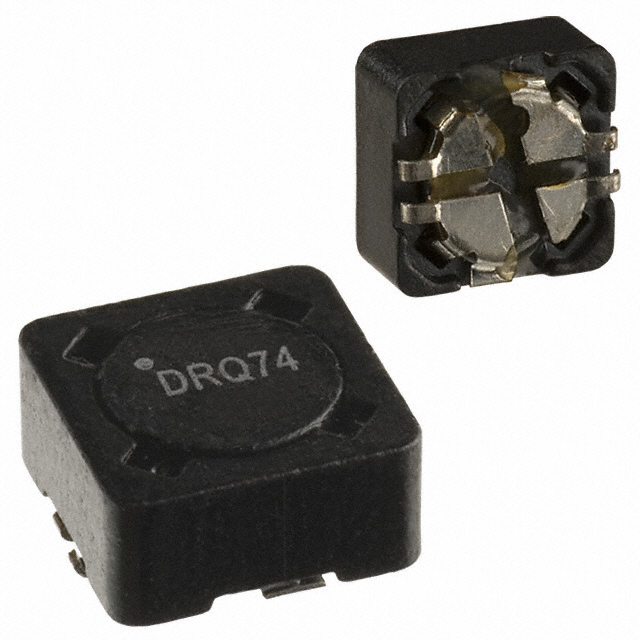

| Part number: | DRQ74-4R7-R |
| Description: | INDUCT ARRAY 2 COIL 5.182UH SMD |
| Manufacturer | PowerStor (Eaton) |
| Encapsulation | Tape & Reel (TR) |
| Quantity | 1100 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "PowerStor (Eaton)" |
| Tolerance | ±20% |
| Package / Case | Nonstandard |
| Size / Dimension | 0.299" L x 0.299" W (7.60mm x 7.60mm) |
| Mounting Type | Surface Mount |
| Shielding | Shielded |
| Operating Temperature | -40°C ~ 125°C |
| Height | 0.175" (4.45mm) |
| Number of Coils | 2 |
| Inductance - Connected In Series | 20.73 µH |
| Inductance - Connected In Parallel | 5.182 µH |
| Current Rating - Parallel | 3.34 A |
| Current Rating - Series | 1.67 A |
| Current Saturation - Parallel | 4.37 A |
| Current Saturation - Series | 2.19 A |
| DC Resistance (DCR) - Parallel | 25.4mOhm |
| DC Resistance (DCR) - Series | 102mOhm |
|
