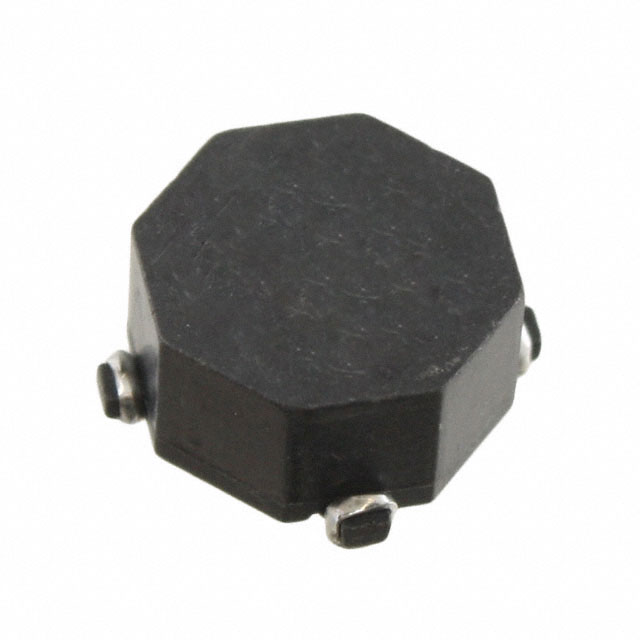

| Part number: | CTX100-4A-R |
| Description: | INDUCT ARRAY 2 COIL 100.57UH SMD |
| Manufacturer | PowerStor (Eaton) |
| Encapsulation | Tape & Reel (TR) |
| Quantity | 600 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "PowerStor (Eaton)" |
| Tolerance | ±25% |
| Package / Case | Nonstandard |
| Size / Dimension | 0.550" L x 0.550" W (13.97mm x 13.97mm) |
| Mounting Type | Surface Mount |
| Shielding | Unshielded |
| Operating Temperature | -40°C ~ 85°C |
| Height | 0.250" (6.35mm) |
| Number of Coils | 2 |
| Inductance - Connected In Series | 402.3 µH |
| Inductance - Connected In Parallel | 100.57 µH |
| Current Rating - Parallel | 1.37 A |
| Current Rating - Series | 690 mA |
| Current Saturation - Parallel | 1.32 A |
| Current Saturation - Series | 660 mA |
| DC Resistance (DCR) - Parallel | 235mOhm Max |
| DC Resistance (DCR) - Series | 939mOhm Max |
|
