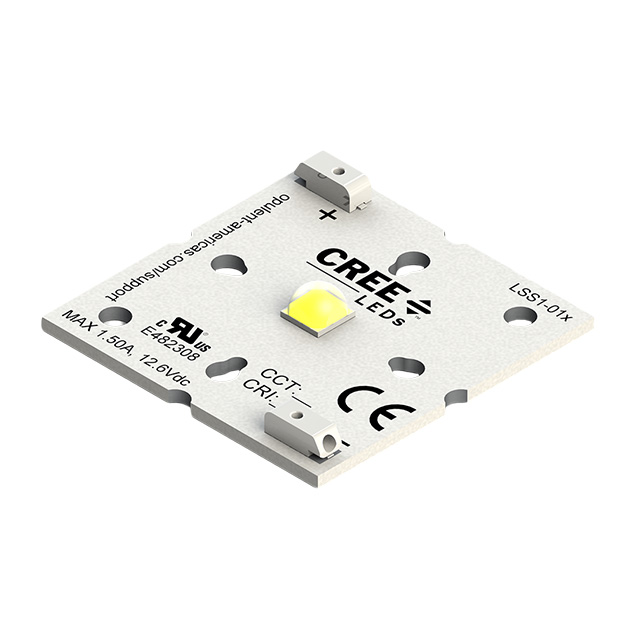

| Part number: | LSS1-01C22-4070-00 |
| Description: | LED MOD XHP50.2 NEUT WH SQ 4000K |
| Manufacturer | New Energy |
| Encapsulation | Tray |
| Quantity | 1 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "New Energy" |
| Color | White, Neutral |
| Size / Dimension | 36.83mm L x 36.83mm W |
| Type | LED Module |
| Configuration | Square |
| Voltage - Forward (Vf) (Typ) | 11.2V |
| Current - Test | 700mA |
| Lens Type | Domed |
| Current - Max | 1.5A |
| Lumens/Watt @ Current - Test | 143 lm/W |
| CCT (K) | 4000K 5-Step MacAdam Ellipse |
| CRI (Color Rendering Index) | 70 |
| Temperature - Test | 85°C |
| Luminous Flux @ Current/Temperature | 1120lm (Typ) |
|
