| Part number: | STGB20NB32LZ |
| Description: | IGBT 375V 40A 150W I2PAK |
| Manufacturer | STMicroelectronics |
| Encapsulation | Tube |
| Quantity | 1000 |
| RoHS |
| TYPE | DESCRIPTION |
| Mfr | "STMicroelectronics" |

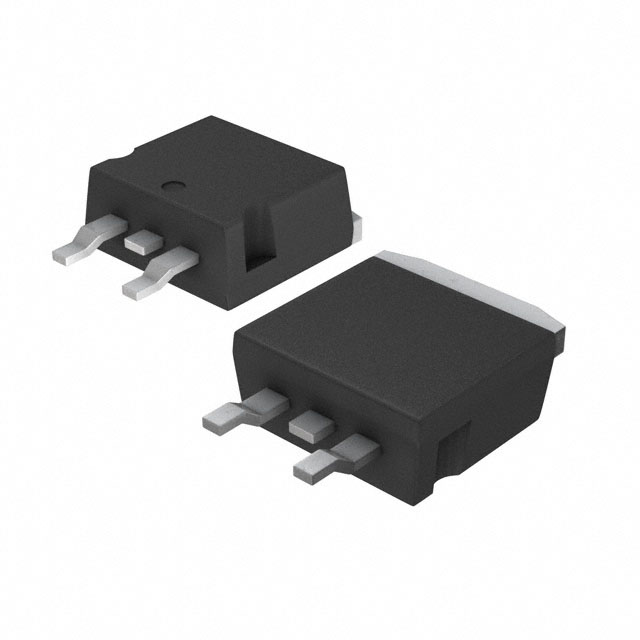

| Package / Case | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB |
| Mounting Type | Surface Mount |
| Operating Temperature | 175°C (TJ) |
| Input Type | Standard |
| Vce(on) (Max) @ Vge, Ic | 2V @ 4.5V, 20A |
| Supplier Device Package | D2PAK |
| Td (on/off) @ 25°C | 2.3µs/11.5µs |
| Switching Energy | 11.8mJ (off) |
| Test Condition | 250V, 20A, 1kOhm, 4.5V |
| Gate Charge | 51 nC |
| Current - Collector (Ic) (Max) | 40 A |
| Voltage - Collector Emitter Breakdown (Max) | 375 V |
| Current - Collector Pulsed (Icm) | 80 A |
| Power - Max | 150 W |
|
