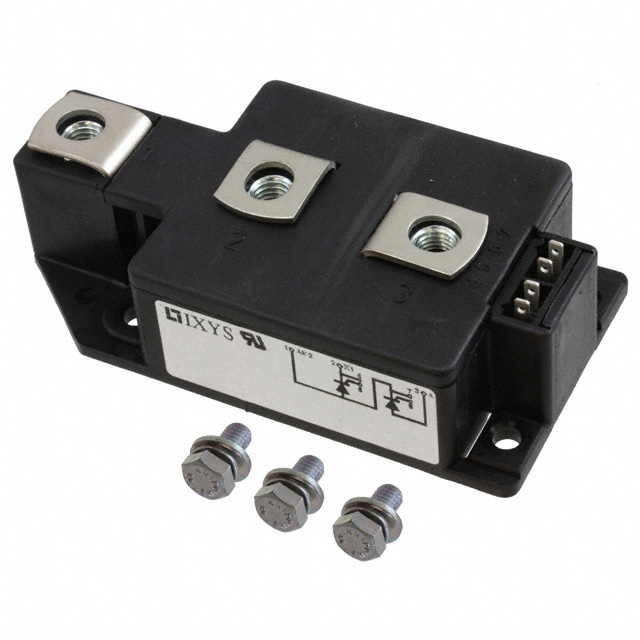

| Part number: | MCC250-18IO1 |
| Description: | THYRISTOR DUAL 1800V 450A |
| Manufacturer | Littelfuse / IXYS RF |
| Encapsulation | Bulk |
| Quantity | 2 |
| RoHS |
| TYPE | DESCRIPTION |
| Mfr | "Littelfuse / IXYS RF" |
| Package / Case | Y2-DCB |
| Mounting Type | Chassis Mount |
| Operating Temperature | -40°C ~ 140°C (TJ) |
| Structure | Series Connection - All SCRs |
| Current - Hold (Ih) (Max) | 150 mA |
| Current - Gate Trigger (Igt) (Max) | 150 mA |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | 9000A, 9600A |
| Number of SCRs, Diodes | 2 SCRs |
| Current - On State (It (AV)) (Max) | 287 A |
| Voltage - Gate Trigger (Vgt) (Max) | 2 V |
| Current - On State (It (RMS)) (Max) | 450 A |
| Voltage - Off State | 1.8 kV |
|
