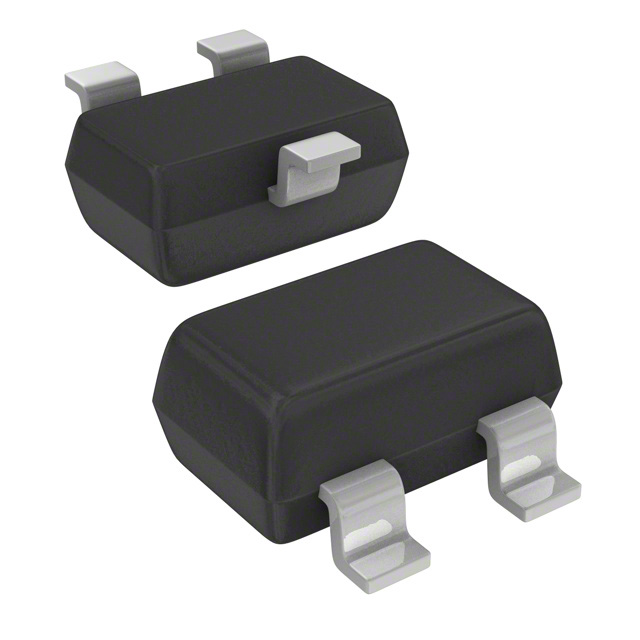

| Part number: | AT-32032-TR1 |
| Description: | RF TRANS NPN 5.5V SC70-3 |
| Manufacturer | Broadcom |
| Encapsulation | Tape & Reel (TR) |
| Quantity | 3000 |
| RoHS |
| TYPE | DESCRIPTION |
| Mfr | "Broadcom" |
| Package / Case | SC-70, SOT-323 |
| Mounting Type | Surface Mount |
| Transistor Type | NPN |
| Operating Temperature | 150°C (TJ) |
| Gain | 13.5dB ~ 15dB |
| Power - Max | 200mW |
| Current - Collector (Ic) (Max) | 40mA |
| Voltage - Collector Emitter Breakdown (Max) | 5.5V |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 70 @ 5mA, 2.7V |
| Noise Figure (dB Typ @ f) | 1dB ~ 1.3dB @ 900MHz |
| Supplier Device Package | SC-70-3 |
|
