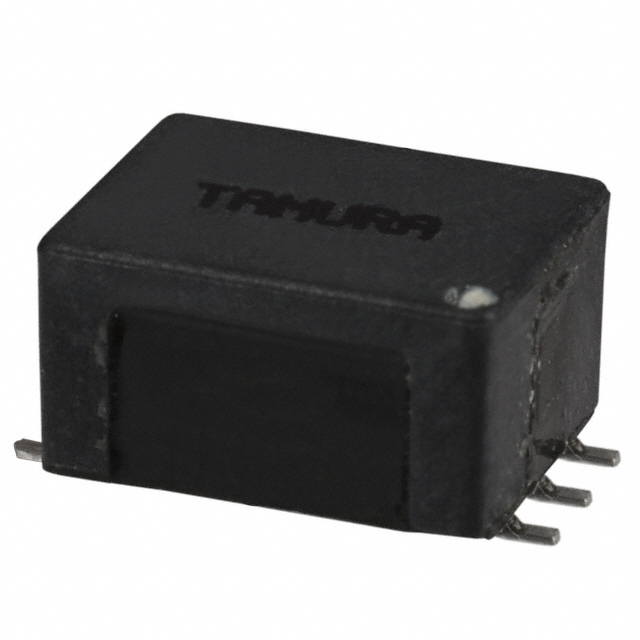

| Part number: | TTC-5034 |
| Description: | AUDIO XFMR 20K / 20K SMD |
| Manufacturer | Tamura |
| Encapsulation | Tape & Reel (TR) |
| Quantity | 4000 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Tamura" |
| Size / Dimension | 0.378" L x 0.492" W (9.60mm x 12.50mm) |
| Mounting Type | Surface Mount |
| Operating Temperature | -20°C ~ 85°C |
| Termination Style | Flat Lead |
| Transformer Type | Data/Voice Coupling |
| Turns Ratio - Primary:Secondary | 1:1 |
| Voltage - Isolation | 1875VRMS @ 1 Second |
| Approval Agency | UL60950, EN60950 |
| Height - Seated (Max) | 0.299" (7.60mm) |
| Impedance - Primary (Ohms) | 20k |
| Impedance - Secondary (Ohms) | 20k |
| DC Resistance (DCR) - Primary | 1.3kOhm |
| DC Resistance (DCR) - Secondary | 1.3kOhm |
|
