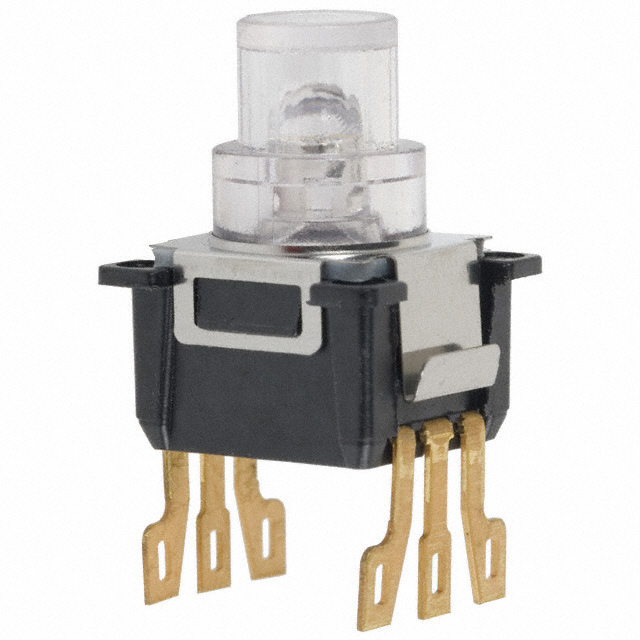

| Part number: | K5V1GN43P |
| Description: | SWITCH TACTILE SPDT 0.1A 32V |
| Manufacturer | Littelfuse / C&K |
| Encapsulation | Tray |
| Quantity | 60 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Littelfuse / C&K" |
| Features | Tactile Feedback |
| Mounting Type | Panel Mount |
| Circuit | SPDT |
| Switch Function | On-Mom |
| Operating Temperature | -40°C ~ 85°C |
| Termination Style | Solder Lug |
| Illumination Type, Color | LED, Green |
| Illumination | Illuminated |
| Contact Rating @ Voltage | 0.1A @ 32VDC |
| Actuator Type | Translucent |
| Operating Force | 400gf |
| Outline | 9.70mm x 8.50mm |
| Ingress Protection | IP40 |
| Actuator Height off PCB, Vertical | 13.35mm |
| Actuator Orientation | Top Actuated |
|
