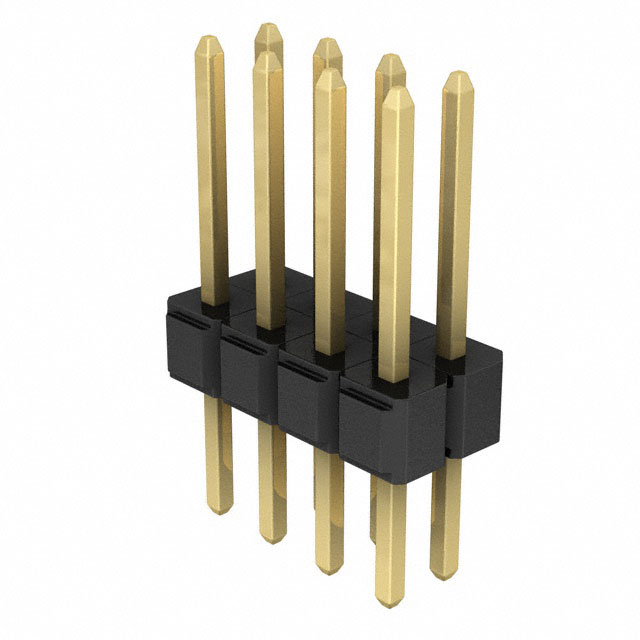

| Part number: | 929715-10-04-I |
| Description: | CONN HEADER VERT 8POS 2.54MM |
| Manufacturer | 3M |
| Encapsulation | Bulk |
| Quantity | 1 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "3M" |
| Connector Type | Header |
| Current Rating (Amps) | 2.5A |
| Mounting Type | Through Hole |
| Number of Positions | 8 |
| Number of Rows | 2 |
| Style | Board to Board |
| Operating Temperature | -40°C ~ 105°C |
| Contact Type | Male Pin |
| Fastening Type | Push-Pull |
| Number of Positions Loaded | All |
| Termination | Solder |
| Material Flammability Rating | UL94 V-0 |
| Contact Material | Copper Alloy |
| Insulation Color | Black |
| Pitch - Mating | 0.100" (2.54mm) |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 10.0µin (0.25µm) |
| Contact Finish - Post | Gold |
| Contact Finish Thickness - Post | 10.0µin (0.25µm) |
| Contact Shape | Square |
| Contact Length - Post | 0.175" (4.45mm) |
| Insulation Height | 0.100" (2.54mm) |
| Shrouding | Unshrouded |
| Overall Contact Length | 0.593" (15.07mm) |
| Insulation Material | Polybutylene Terephthalate (PBT), Polyester, Glass Filled |
| Row Spacing - Mating | 0.100" (2.54mm) |
| Contact Length - Mating | 0.318" (8.08mm) |
|
