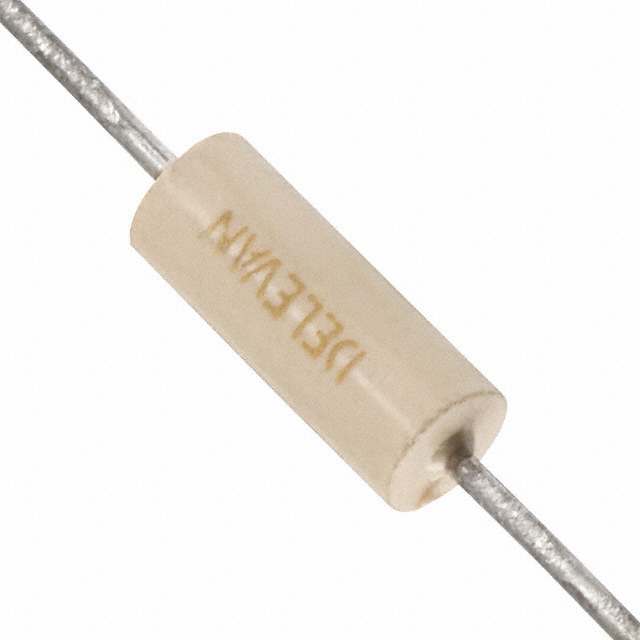

| Part number: | 1025-16K |
| Description: | FIXED IND 680NH 500MA 600MOHM TH |
| Manufacturer | API Delevan |
| Encapsulation | Cut Tape (CT) |
| Quantity | 500 |
| RoHS |
| TYPE | DESCRIPTION |
| Mfr | "API Delevan" |
| Tolerance | ±10% |
| Package / Case | Axial |
| Size / Dimension | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) |
| Mounting Type | Through Hole |
| Shielding | Unshielded |
| Type | Molded |
| Operating Temperature | -55°C ~ 125°C |
| DC Resistance (DCR) | 600mOhm Max |
| Q @ Freq | 28 @ 25MHz |
| Frequency - Self Resonant | 275MHz |
| Material - Core | Phenolic |
| Inductance Frequency - Test | 25 MHz |
| Inductance | 680 nH |
| Current Rating (Amps) | 500 mA |
|
