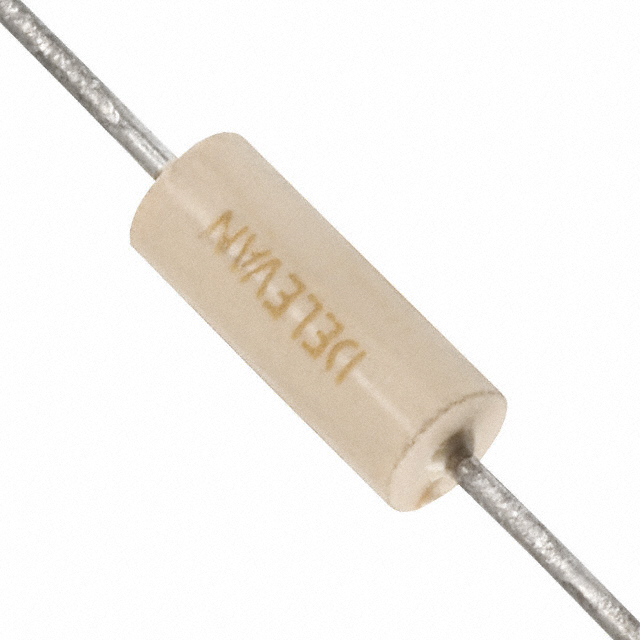

| Part number: | 1025-90K |
| Description: | FIXED IND 820UH 29MA 65 OHM TH |
| Manufacturer | API Delevan |
| Encapsulation | Bulk |
| Quantity | 500 |
| RoHS |
| TYPE | DESCRIPTION |
| Mfr | "API Delevan" |
| Tolerance | ±10% |
| Package / Case | Axial |
| Size / Dimension | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) |
| Mounting Type | Through Hole |
| Shielding | Unshielded |
| Type | Molded |
| Operating Temperature | -55°C ~ 105°C |
| DC Resistance (DCR) | 65Ohm Max |
| Q @ Freq | 30 @ 790kHz |
| Frequency - Self Resonant | 3.8MHz |
| Material - Core | Ferrite |
| Inductance Frequency - Test | 790 kHz |
| Inductance | 820 µH |
| Current Rating (Amps) | 29 mA |
|
