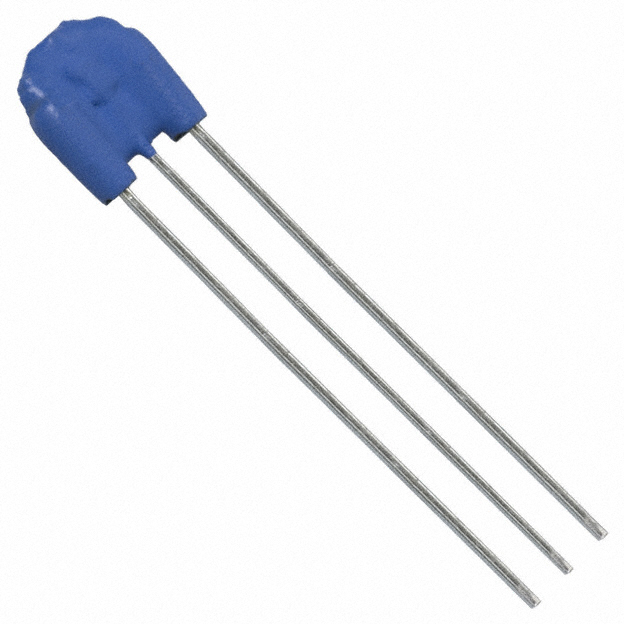

| Part number: | EMI221T-RC |
| Description: | FILTER LC(T) 0.05 OHM/220PF TH |
| Manufacturer | J.W. Miller / Bourns |
| Encapsulation | Tape & Box (TB) |
| Quantity | 2000 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "J.W. Miller / Bourns" |
| Voltage - Rated | 50V |
| Package / Case | Radial - 3 Leads |
| Size / Dimension | 0.354" L x 0.126" W (9.00mm x 3.20mm) |
| Mounting Type | Through Hole |
| Type | Low Pass |
| Operating Temperature | -25°C ~ 85°C |
| Values | R = 0.05Ohms, C = 220pF |
| Height | 0.315" (8.00mm) |
| Attenuation Value | 25dB @ 200MHz ~ 350MHz |
| Filter Order | 3rd |
| Applications | General Purpose |
| Technology | LC (T-Type) |
| Resistance - Channel (Ohms) | 0.05 |
| ESD Protection | No |
| Number of Channels | 1 |
| Current | 5 A |
|
