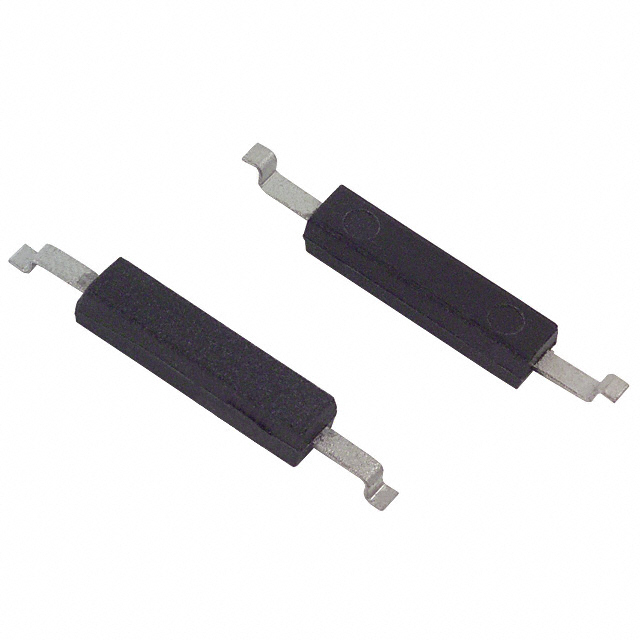

| Part number: | MK22-B-4 |
| Description: | SWITCH REED SPST-NO 1A 200V |
| Manufacturer | Standex Electronics |
| Encapsulation | Tape & Reel (TR) |
| Quantity | 2500 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Standex Electronics" |
| Mounting Type | Surface Mount |
| Circuit | SPST-NO |
| Type | Molded Body Reed |
| Operating Temperature | -40°C ~ 130°C |
| Termination Style | Gull Wing |
| Length - Overall | 0.768" (19.50mm) |
| Power - Rated | 20W |
| Height Above Board | 0.094" (2.40mm) |
| Current - Switching | 1A (AC/DC) |
| Voltage - Switching DC | 200 V |
| Operate Time | 0.5 ms |
| Release Time | 0.1 ms |
| Size - Body | 0.457" L x 0.116" W x 0.091" H (11.60mm x 2.95mm x 2.30mm) |
| Operate Range | 10 ~ 15AT |
| Current - Carry | 1.25A (AC/DC) |
| Voltage - Switching AC | 200 V |
| Capacitance | 0.3 pF |
|
