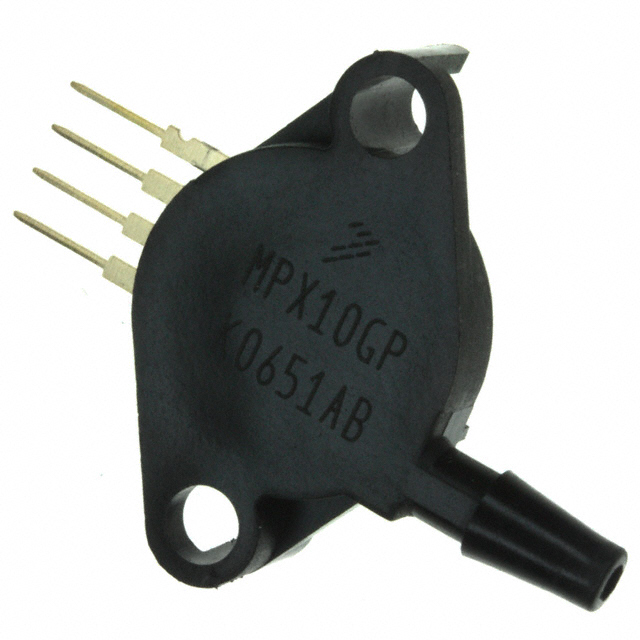

| Part number: | MPX10GP |
| Description: | SENSOR 1.45PSIG 0.19" .035V |
| Manufacturer | NXP Semiconductors |
| Encapsulation | Tray |
| Quantity | 100 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "NXP Semiconductors" |
| Package / Case | 4-SIP Module |
| Output Type | Wheatstone Bridge |
| Mounting Type | Through Hole |
| Output | 0 mV ~ 35 mV (3V) |
| Operating Pressure | 1.45PSI (10kPa) |
| Pressure Type | Vented Gauge |
| Accuracy | ±1% |
| Operating Temperature | -40°C ~ 125°C |
| Termination Style | PC Pin |
| Voltage - Supply | 3V ~ 6V |
| Port Size | Male - 0.19" (4.93mm) Tube |
| Applications | Board Mount |
| Port Style | Barbed |
| Maximum Pressure | 10.88PSI (75kPa) |
|
