| Part number: | 3754/50 300 |

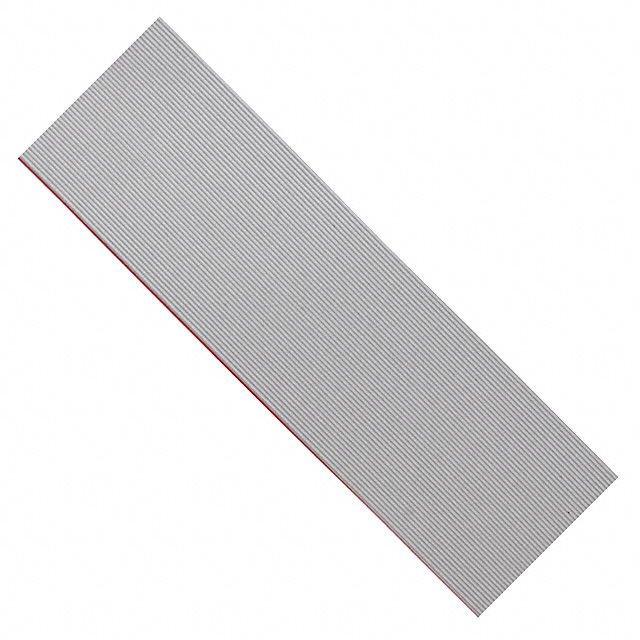

| Description: | CABLE RIBN 50COND 0.025 GRAY |
| Manufacturer | 3M |
| Encapsulation | Spool |
| Quantity | 1 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "3M" |
| Length | 300.0' (91.44m) |
| Wire Gauge | 30 AWG |
| Shielding | Unshielded |
| Jacket (Insulation) Material | Poly-Vinyl Chloride (PVC) |
| Conductor Strand | 7 Strands / 38 AWG |
| Pitch | 0.025" (0.64mm) |
| Operating Temperature | -20°C ~ 105°C |
| Number of Conductors | 50 |
| Cable Type | Flat Cable |
| Ratings | UL Style 20596 |
| Conductor Material | Copper, Tinned |
| Jacket Color | Gray |
| Insulation Resistance | 10GOhm |
| Ribbon Thickness | 0.025" (0.64mm) |
| Ribbon Width | 1.250" (31.75mm) |
| First Conductor Mark | Red |
| Voltage | 30 V |
|
