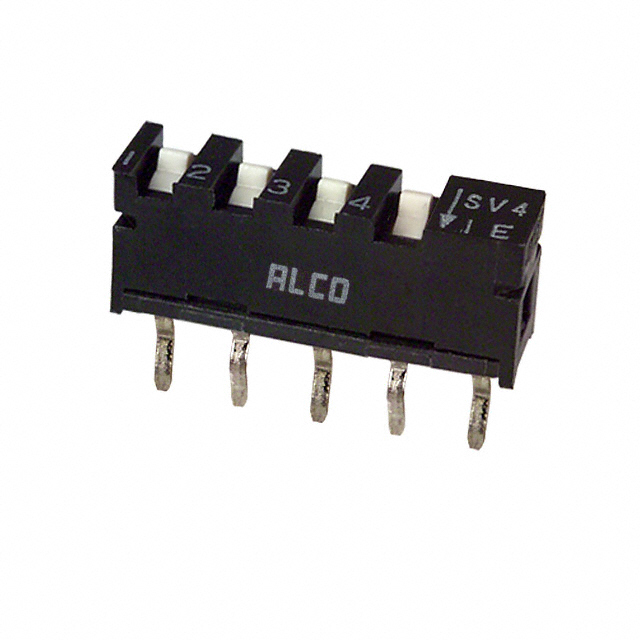

| Part number: | SSV04 |
| Description: | SWITCH SLIDE DIP SPST 0.4VA 20V |
| Manufacturer | TE Connectivity ALCOSWITCH Switches |
| Encapsulation | Tube |
| Quantity | 35 |
| RoHS |
| TYPE | DESCRIPTION |
| Mfr | "TE Connectivity ALCOSWITCH Switches" |
| Features | Process Sealed |
| Contact Finish | Gold |
| Voltage Rating | 20VAC/DC |
| Current Rating (Amps) | 0.4VA |
| Mounting Type | Through Hole |
| Pitch | 0.100" (2.54mm), Full |
| Circuit | SPST |
| Operating Temperature | -30°C ~ 85°C |
| Termination Style | PC Pin |
| Actuator Type | Slide (Standard) |
| Height Above Board | 0.197" (5.00mm) |
| Actuator Level | Flush, Recessed |
| Washable | Yes |
| Contact Material | Beryllium Copper |
| Number of Positions | 4 |
|
