| Part number: | STMGFW304815-N2 |

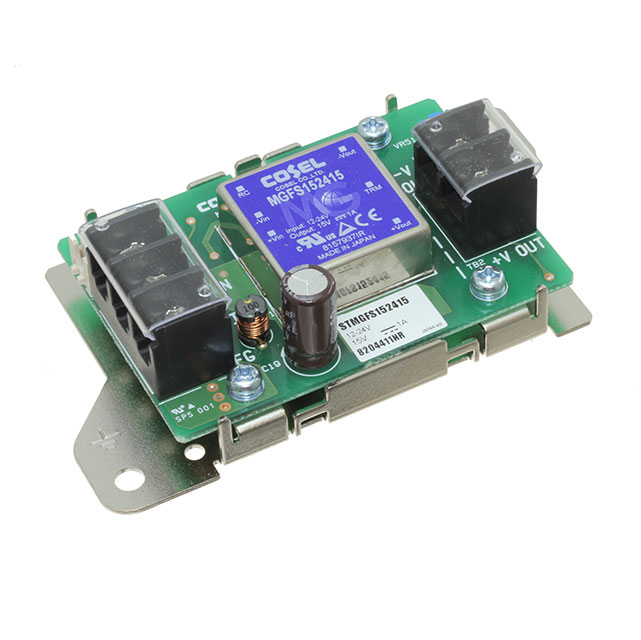

| Description: | DC/DC CONVERTER +/-15V 30W |
| Manufacturer | Cosel |
| Encapsulation | Box |
| Quantity | 1 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Cosel" |
| Power (Watts) | 30W |
| Size / Dimension | 4.61" L x 2.05" W x 1.06" H (117.1mm x 52.1mm x 26.9mm) |
| Mounting Type | Chassis Mount |
| Type | Open Frame |
| Operating Temperature | -20°C ~ 70°C (With Derating) |
| Applications | ITE (Commercial) |
| Voltage - Input (Max) | 76V |
| Approval Agency | CE |
| Efficiency | 87% |
| Current - Output (Max) | 1A, 1A |
| Voltage - Input (Min) | 18V |
| Voltage - Output 1 | 15V |
| Voltage - Output 2 | -15V |
| Number of Outputs | 2 |
| Voltage - Isolation | 1.5 kV |
|
