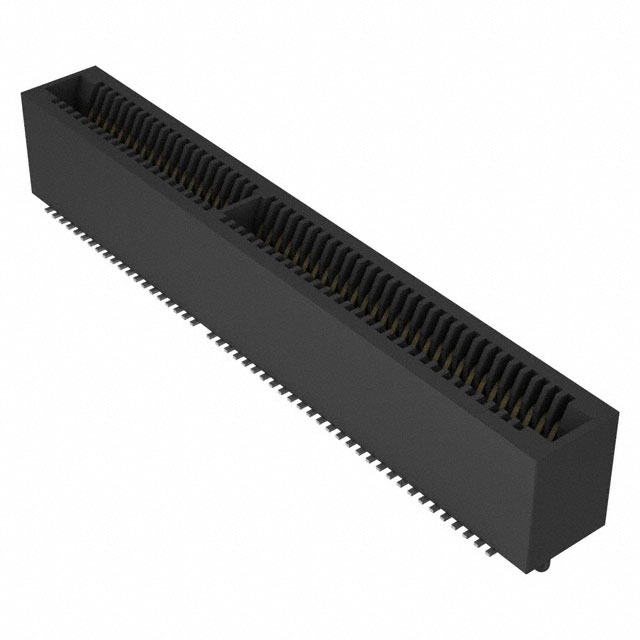

| Part number: | MEC1-150-02-F-D |
| Description: | CONN EDGE DUAL FML 100POS 0.039 |
| Manufacturer | Samtec, Inc. |
| Encapsulation | Tube |
| Quantity | 10 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Samtec, Inc." |
| Features | Board Guide |
| Gender | Female |
| Contact Finish | Gold |
| Color | Black |
| Mounting Type | Surface Mount |
| Number of Positions | 100 |
| Pitch | 0.039" (1.00mm) |
| Operating Temperature | -55°C ~ 125°C |
| Read Out | Dual |
| Contact Type | Loop Bellows |
| Card Type | Non Specified - Dual Edge |
| Card Thickness | 0.062" (1.57mm) |
| Termination | Solder |
| Contact Finish Thickness | 3.00µin (0.076µm) |
| Material - Insulation | Liquid Crystal Polymer (LCP) |
| Contact Material | Phosphor Bronze |
| Number of Rows | 2 |
|
