| Part number: | BXRE-40E6500-D-73 |

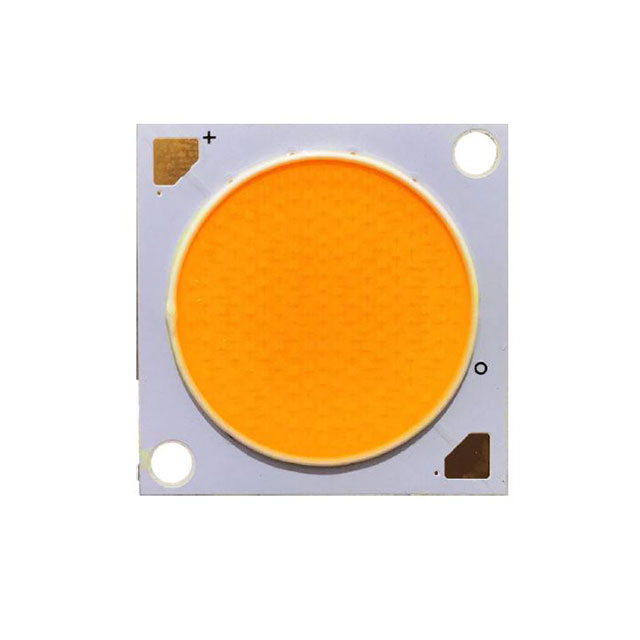

| Description: | LED COB V22 NEUT WHT SQU 4000K |
| Manufacturer | Bridgelux, Inc. |
| Encapsulation | Tray |
| Quantity | 15 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Bridgelux, Inc." |
| Color | White, Neutral |
| Size / Dimension | 28.00mm L x 28.00mm W |
| Type | Chip On Board (COB) |
| Configuration | Square |
| Voltage - Forward (Vf) (Typ) | 33.4V |
| Height | 1.70mm |
| Current - Test | 1.4A |
| Viewing Angle | 120° |
| Lens Type | Flat |
| Current - Max | 2.8A |
| Lumens/Watt @ Current - Test | 149 lm/W |
| CCT (K) | 4000K 3-Step MacAdam Ellipse |
| CRI (Color Rendering Index) | 80 |
| Light Emitting Surface (LES) | 22.60mm Dia |
| Temperature - Test | 85°C |
| Luminous Flux @ Current/Temperature | 6956lm (Typ) |
|
