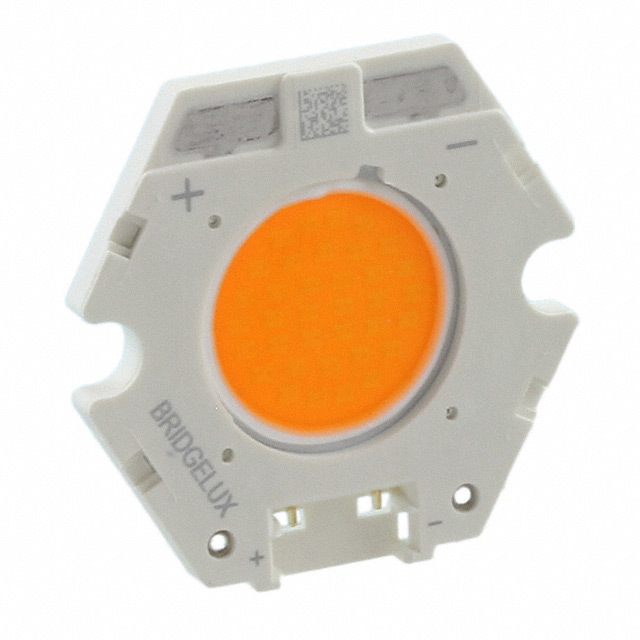

| Part number: | BXRC-20B1001-B-73 |
| Description: | LED COB VERO WM WH STARBRD 2000K |
| Manufacturer | Bridgelux, Inc. |
| Encapsulation | Tray |
| Quantity | 200 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Bridgelux, Inc." |
| Features | With Connector |
| Color | White, Warm |
| Size / Dimension | 20.00mm Dia |
| Type | Chip On Board (COB) |
| Configuration | Starboard |
| Voltage - Forward (Vf) (Typ) | 34.8V |
| Height | 1.90mm |
| Current - Test | 270mA |
| Viewing Angle | 120° |
| Lens Type | Flat |
| Current - Max | 540mA |
| Lumens/Watt @ Current - Test | 145 lm/W |
| CCT (K) | 2000K 3-Step MacAdam Ellipse |
| CRI (Color Rendering Index) | 65 |
| Light Emitting Surface (LES) | 9.90mm Dia |
| Temperature - Test | 25°C |
| Luminous Flux @ Current/Temperature | 1365lm (Typ) |
|
