| Part number: | STGD3NB60SDT4 |
| Description: | IGBT 600V 6A DPAK |
| Manufacturer | STMicroelectronics |
| Encapsulation | Tape & Reel (TR) |
| Quantity | 2500 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "STMicroelectronics" |

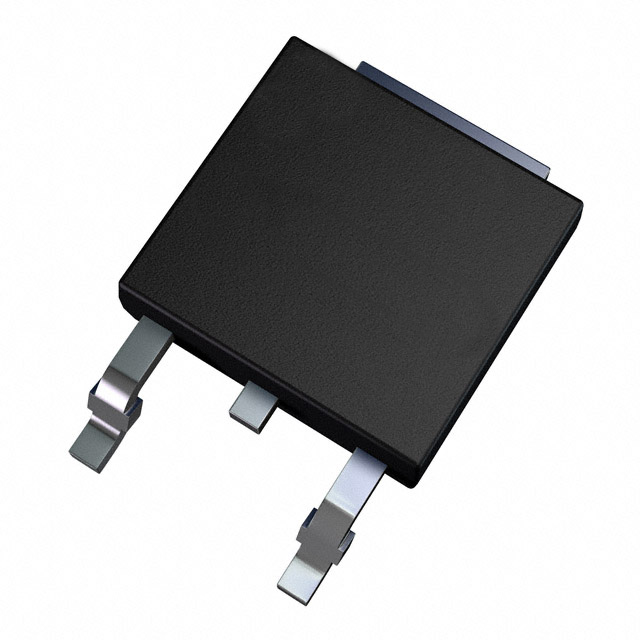

| Package / Case | TO-252-3, DPAK (2 Leads + Tab), SC-63 |
| Mounting Type | Surface Mount |
| Operating Temperature | 175°C (TJ) |
| Input Type | Standard |
| Reverse Recovery Time (trr) | 1.7 µs |
| Vce(on) (Max) @ Vge, Ic | 1.5V @ 15V, 3A |
| Supplier Device Package | DPAK |
| Td (on/off) @ 25°C | 125µs/- |
| Switching Energy | 1.15mJ (off) |
| Test Condition | 480V, 3A, 1kOhm, 15V |
| Gate Charge | 18 nC |
| Current - Collector (Ic) (Max) | 6 A |
| Voltage - Collector Emitter Breakdown (Max) | 600 V |
| Current - Collector Pulsed (Icm) | 25 A |
| Power - Max | 48 W |
|
