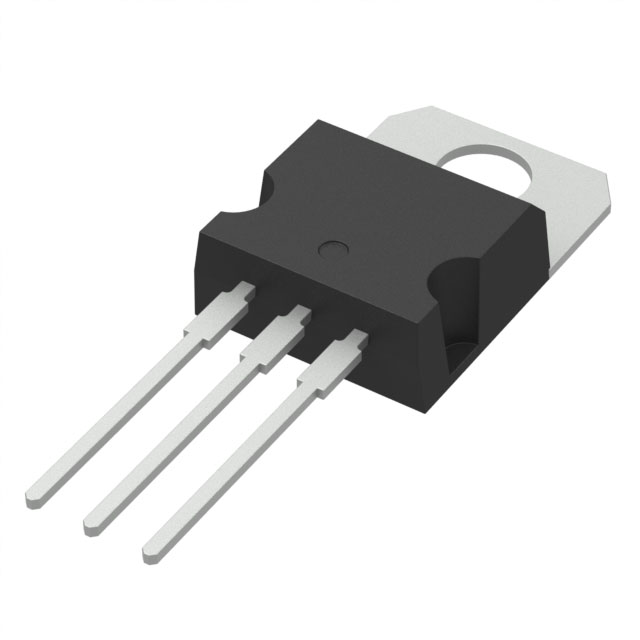

| Part number: | STGP7NB60KD |
| Description: | IGBT 600V 14A 80W TO220 |
| Manufacturer | STMicroelectronics |
| Encapsulation | Tube |
| Quantity | 1000 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "STMicroelectronics" |
| Package / Case | TO-220-3 |
| Mounting Type | Through Hole |
| Operating Temperature | 150°C (TJ) |
| Input Type | Standard |
| Reverse Recovery Time (trr) | 50 ns |
| Vce(on) (Max) @ Vge, Ic | 2.8V @ 15V, 7A |
| Supplier Device Package | TO-220 |
| Td (on/off) @ 25°C | 15ns/50ns |
| Switching Energy | 140µJ (off) |
| Test Condition | 480V, 7A, 10Ohm, 15V |
| Gate Charge | 32.7 nC |
| Current - Collector (Ic) (Max) | 14 A |
| Voltage - Collector Emitter Breakdown (Max) | 600 V |
| Current - Collector Pulsed (Icm) | 56 A |
| Power - Max | 80 W |
|
