| Part number: | CHM-9-50-80-36-XD20-F4-3 |

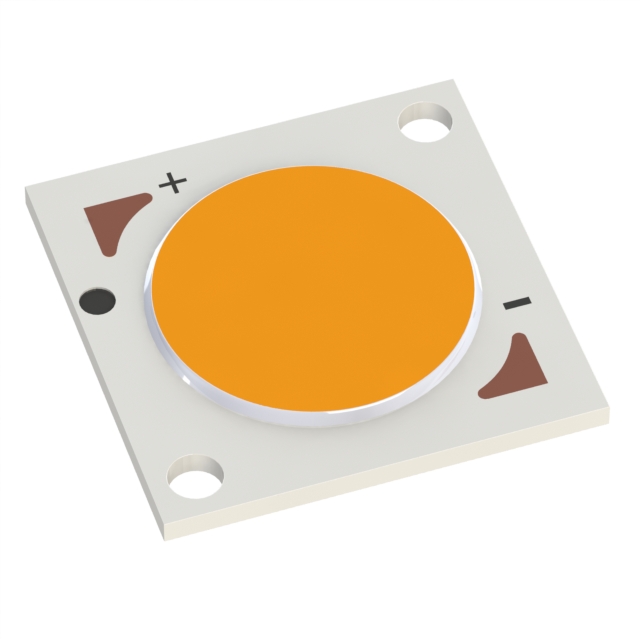

| Description: | LED COB CHM9 CL WH SQUARE 5000K |
| Manufacturer | Luminus Devices |
| Encapsulation | Tray |
| Quantity | 300 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Luminus Devices" |
| Color | White, Cool |
| Size / Dimension | 15.00mm L x 15.00mm W |
| Type | Chip On Board (COB) |
| Configuration | Square |
| Voltage - Forward (Vf) (Typ) | 34V |
| Height | 1.37mm |
| Current - Test | 360mA |
| Viewing Angle | 120° |
| Lens Type | Flat |
| Current - Max | 990mA |
| Lumens/Watt @ Current - Test | 145 lm/W |
| CCT (K) | 5000K 3-Step MacAdam Ellipse |
| CRI (Color Rendering Index) | 80 |
| Light Emitting Surface (LES) | 9.60mm Dia |
| Temperature - Test | 85°C |
| Luminous Flux @ Current/Temperature | 1775lm (Typ) |
|
