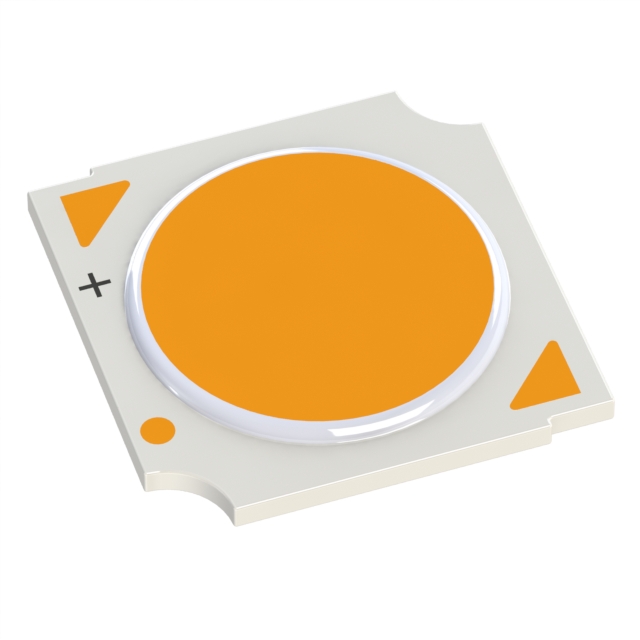

| Part number: | CIM-9-35-80-36-AC32-F4-3 |
| Description: | LED COB SENSUS GEN3 WHT SQ 3500K |
| Manufacturer | Luminus Devices |
| Encapsulation | Tray |
| Quantity | 400 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Luminus Devices" |
| Color | White, Warm |
| Size / Dimension | 13.50mm L x 13.50mm W |
| Type | Chip On Board (COB) |
| Configuration | Square |
| Voltage - Forward (Vf) (Typ) | 33.8V |
| Height | 1.37mm |
| Current - Test | 180mA |
| Viewing Angle | 120° |
| Lens Type | Flat |
| Current - Max | 355mA |
| Lumens/Watt @ Current - Test | 145 lm/W |
| CCT (K) | 3500K 3-Step MacAdam Ellipse |
| CRI (Color Rendering Index) | 80 |
| Light Emitting Surface (LES) | 9.60mm Dia |
| Temperature - Test | 85°C |
| Luminous Flux @ Current/Temperature | 885lm (Typ) |
|
